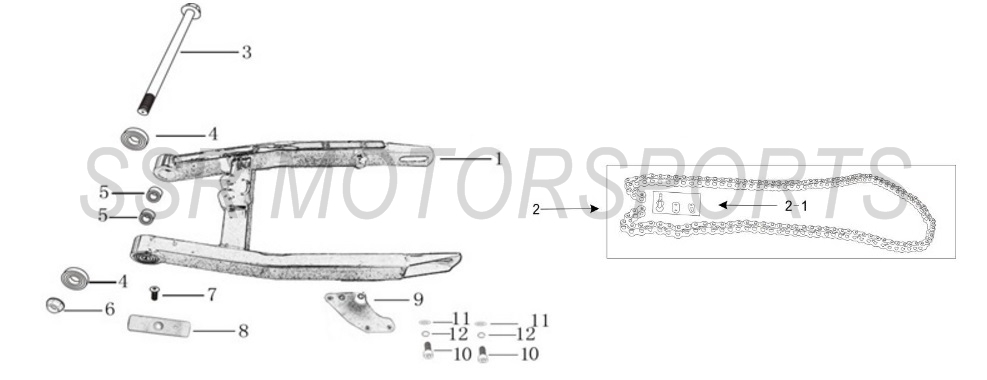

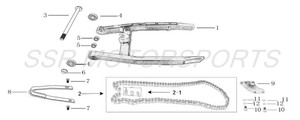

Swingarm
Click parts on table to add
| # | Part # | Description | Price | Qty |
|---|---|---|---|---|
| 1 | A00484-11-00 | SWINGARM | $75.30 | 1 |
| 2 | A00290-07-00 | DRIVE CHAIN 420-92L | $45.50 | 1 |
| 2-1 | A00287-07-00 | CLIP LINK 420 | $6.10 | 1 |
| 3 | A00369-11-00 | SWINGARM AXLE 10X190X1.25MM | $10.50 | 1 |
| 4 | A00061-28-00 | BEARING 6200ZZ | $8.80 | 2 |
| 5 | A00488-11-00 | SPACER 10.2X22.5XH17 | $6.10 | 2 |
| 6 | A00004-22-34 | FLANGE LOCKNUT M10 | $2.50 | 1 |
| 7 | A00006-20-12 | CS SCREW M6X12 | $2.00 | 1 |
| 8 | A00370-11-00 | UPPER CHAIN SLIDER WHITE TEFLON | $10.50 | 1 |
| 9 | A00371-11-00 | LOWER CHAIN GUIDE | $24.50 | 1 |
| 10 | A00251-19-02 | ALLEN BOLT M8X20 | $2.00 | 2 |
| 11 | A00013-21-01 | WASHER 8X16X1.5 | $2.00 | 2 |
| 12 | A00001-21-02 | LOCK WASHER 8X13X2 | $2.00 | 2 |
| 13 | A00428-19-08 | CASE FLANGE BOLT M6X50 | $2.00 | 3 |
| 14 | A00005-22-04 | FLANGE LOCKNUT M6 | $2.00 | 3 |
Selected Parts
