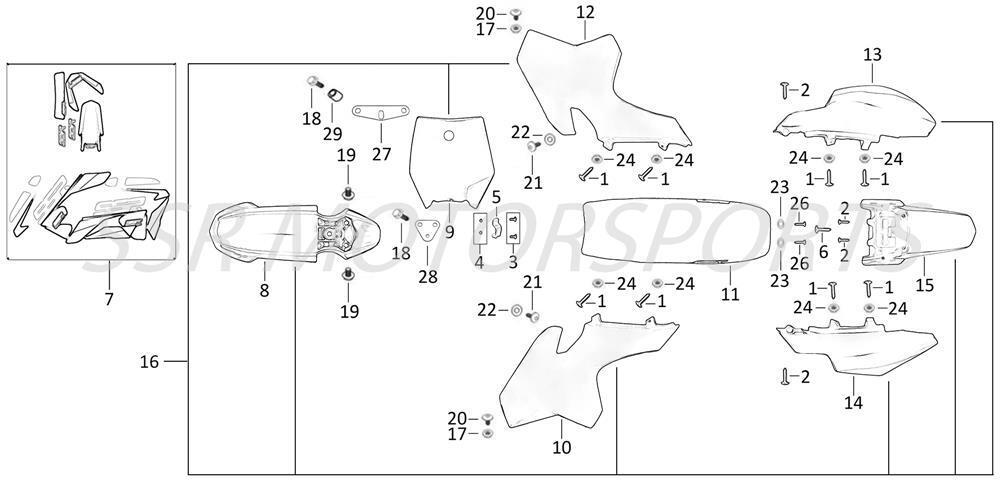

Body & Seat
Click parts on table to add
| # | Part # | Description | Price | Qty |
|---|---|---|---|---|
| 1 | A00010-20-03 | SCREW ST4.2X16 | $2.00 | 8 |
| 2 | A00002-20-03 | SCREW ST4.2X12 | $2.00 | 4 |
| 3 | A00009-20-01 | SCREW M4X12 | $2.00 | 2 |
| 4 | A00348-22-04 | LOCKNUT M4 | $2.00 | 2 |
| 5 | A00684-02-00 | FRONT BRAKE HOSE GUIDE WHITE | $2.00 | 1 |
| 6 | A00009-20-03 | ST SCREW ST4.8X16 | $2.00 | 1 |
| 7 | A00702-02-00 | GRAPHIC KIT 3M | $45.50 | 1 |
| 8 | A00685-02-02 | FRONT FENDER BLACK | $15.80 | 1 |
| 8 | A00685-02-01 | FRONT FENDER WHITE | $15.80 | 1 |
| 8 | A00685-02-40 | FRONT FENDER LIME GREEN | $15.80 | 1 |
| 8 | A00685-02-12 | FRONT FENDER BLUE | $15.80 | 1 |
| 8 | A00685-02-18 | FRONT FENDER RED | $15.80 | 1 |
| 8 | A00685-02-03 | FRONT FENDER ORANGE | $15.80 | 1 |
| 11 | A00717-02-00 | SEAT | $52.50 | 1 |
| 17 | A00093-22-03 | FLANGE NUT M6 | $2.00 | 2 |
| 18 | A00002-19-01 | FLANGE BOLT M6X16 | $2.00 | 2 |
| 19 | A00008-19-03 | BOLT M6X12 | $2.00 | 2 |
| 20 | A00003-20-01 | PHILLIPS BOLT TM6X16 | $2.00 | 2 |
| 21 | A00010-19-29 | PAN HEAD PHILLIPS BOLT M6X10 | $2.00 | 2 |
| 22 | A00016-21-01 | RUBBER WASHER 6X17X3.5 | $2.00 | 2 |
| 23 | A00011-21-01 | WASHER 6X18X1.5 | $2.00 | 2 |
| 24 | A00017-21-01 | WASHER 6X12X1.5 | $2.00 | 6 |
| 26 | A00419-19-08 | CASE FLANGE BOLT M6X20 | $2.00 | 2 |
| 27 | A00705-02-00 | UPPER NUMBER PLATE BRACKET | $6.10 | 1 |
| 28 | A00706-02-00 | FRONT FENDER BRACKET | $4.40 | 1 |
| 29 | A00685-02-00 | SPACER 8X16XH6.5 | $2.00 | 1 |
