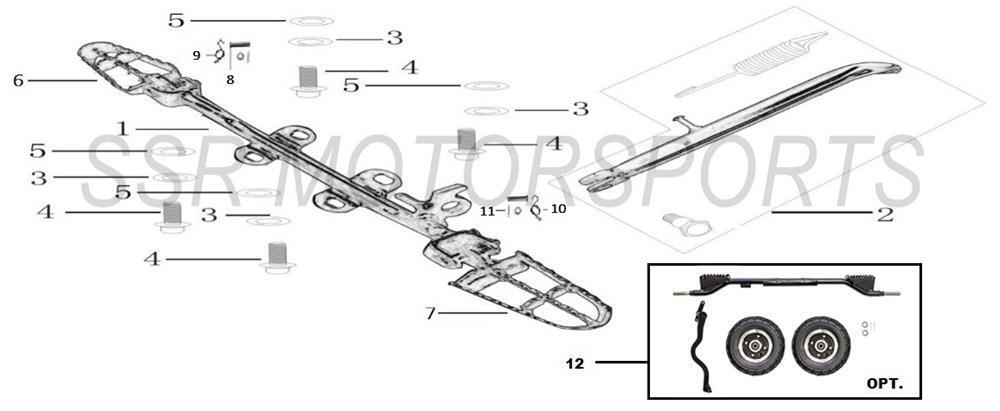

Footpegs & Bracket
Click parts on table to add
| # | Part # | Description | Price | Qty |
|---|---|---|---|---|
| 1 | A00352-05-00 | FOOTPEG BRACKET ASSEMBLY | $75.30 | 1 |
| 2 | A00502-05-00 | SIDE STAND W/ BOLT + SPRING | $31.50 | 1 |
| 3 | A00062-21-01 | WASHER 8X13X2 | $2.00 | 4 |
| 4 | A00015-19-01 | FLANGE BOLT M8X20 | $2.00 | 4 |
| 5 | A00013-21-01 | WASHER 8X16X1.5 | $2.00 | 4 |
| 6 | A00324-05-00 | RIGHT FOOTPEG | $21.00 | 1 |
| 7 | A00326-05-00 | LEFT FOOTPEG | $21.00 | 1 |
| 8 | A00336-05-00 | FOOTPEG PIVOT PIN | $2.00 | 2 |
| 9 | A00505-05-00 | RIGHT FOOTPEG SPRING | $2.00 | 1 |
| 10 | A00506-05-00 | LEFT FOOTPEG SPRING | $2.00 | 1 |
| 11 | A00019-28-01 | COTTER PIN | $2.00 | 2 |
| 12 | A00056-01-00 | TRAINING WHEEL KIT | $154.00 | 1 |
| 13 | A00522-18-00 | TRAINING WHEEL TIRE | $29.80 | 2 |
| 14 | A00086-01-00 | TRAINING WHEEL BUSHING | $4.40 | 4 |
| 14 | A00102-01-00 | TRAINING WHEEL BEARING | $8.00 | 4 |
| 16 | A00523-18-00 | INNER TUBE 2.50-4 | $15.80 | 2 |
| 17 | A00089-01-00 | TRAINING WHEEL REAR BRAKE KIT | $21.00 | 1 |
