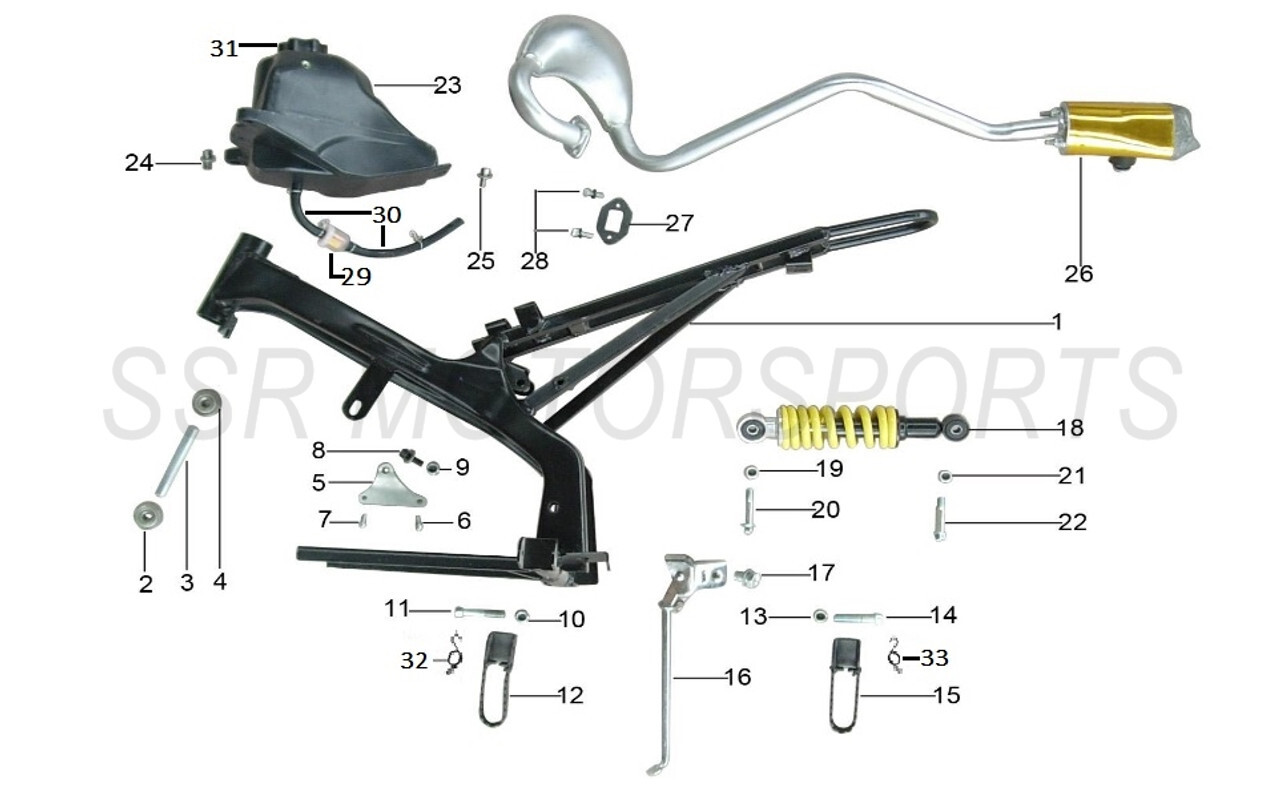

Frame & Components
Click parts on table to add
| # | Part # | Description | Price | Qty |
|---|---|---|---|---|
| 1 | A00300-11-00 | FRAME | $76.00 | 1 |
| 2 | A00301-11-00 | STEERING BEARING | $11.00 | 1 |
| 3 | A00302-11-00 | STEERING STEM SPACER | $11.00 | 1 |
| 4 | A00011-28-00 | BEARING 6200Z/Z | $8.80 | 1 |
| 5 | A00304-11-00 | ENGINE BRACKET | $18.00 | 1 |
| 6 | A00156-19-01 | BOLT | $1.50 | 1 |
| 7 | A00157-19-01 | BOLT | $1.50 | 1 |
| 8 | A00158-19-01 | BOLT | $1.50 | 1 |
| 9 | A00037-22-01 | NUT | $1.50 | 1 |
| 10 | A00038-22-01 | NUT | $1.50 | 1 |
| 11 | A00159-19-01 | BOLT | $1.50 | 1 |
| 12 | A00277-05-00 | LEFT FOOTPEG | $14.00 | 1 |
| 13 | A00039-22-01 | NUT | $1.50 | 1 |
| 14 | A00160-19-01 | BOLT | $1.50 | 1 |
| 15 | A00278-05-00 | RIGHT FOOTPEG | $14.00 | 1 |
| 16 | A00305-11-00 | SIDE STAND ASSY | $21.00 | 1 |
| 17 | A00161-19-03 | BOLT | $1.50 | 1 |
| 18 | A00204-16-00 | REAR SHOCK | $42.00 | 1 |
| 19 | A00122-21-01 | WASHER | $1.50 | 1 |
| 20 | A00162-19-03 | BOLT | $1.50 | 1 |
| 21 | A00123-21-01 | WASHER | $1.50 | 1 |
| 22 | A00163-19-03 | BOLT | $1.50 | 1 |
| 23 | A00249-12-00 | FUEL TANK BLACK | $41.00 | 1 |
| 24 | A00002-12-00 | BOLT | $1.50 | 1 |
| 25 | A00250-12-00 | BOLT | $1.50 | 1 |
| 26 | A00060-10-00 | EXHAUST SYSTEM | $56.00 | 1 |
| 27 | A00109-13-00 | EXHAUST GASKET | $4.00 | 1 |
| 28 | A00164-19-03 | ALLEN BOLT M6x15 | $1.50 | 2 |
| 29 | A00254-12-00 | FUEL FILTER ONLY | $4.40 | 1 |
| 30 | A00255-12-00 | FUEL LINE | $8.00 | 2 |
| 31 | A00394-12-00 | GAS CAP | $10.00 | 1 |
| 32 | A00422-05-00 | RIGHT FOOTPEG SPRING | $1.50 | 1 |
| 33 | A00422-05-0A | LEFT FOOTPEG SPRING | $1.50 | 1 |
