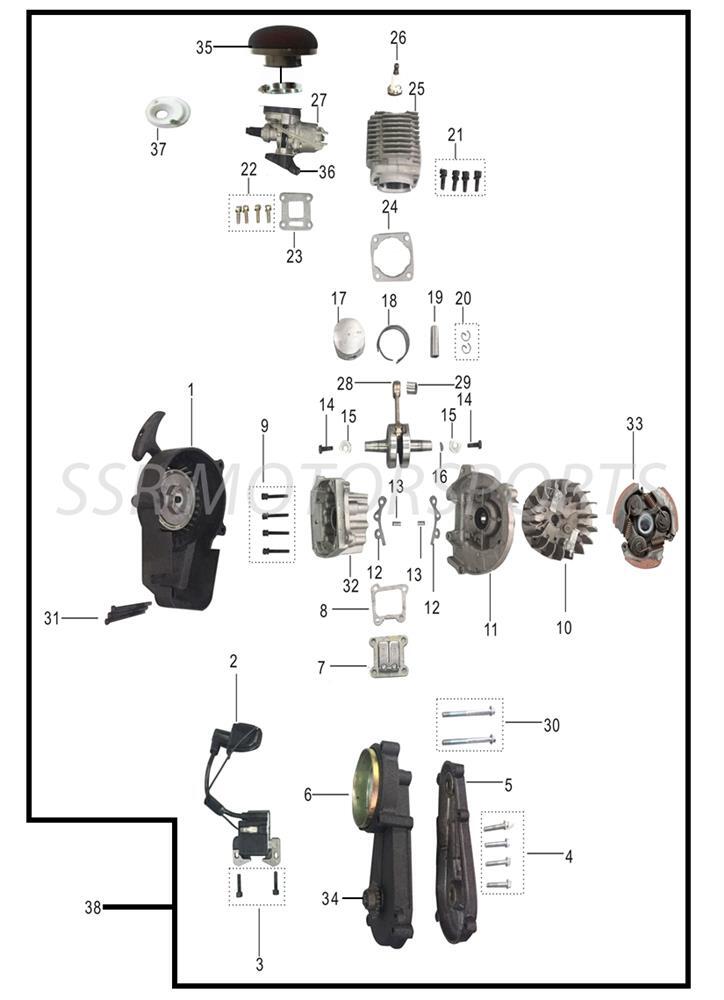

| NO. |
PART NUMBER |
DESCRIPTION |
SPECIFICATION |
QTY. |
UNIT |
RETAIL |
| 1 |
A00960-09-00 |
PULL START ASSY |
|
1 |
Assy. |
$33.00 |
| 2 |
A00407-08-00 |
IGNITION COIL |
|
1 |
Pc. |
$27.00 |
| 3 |
A00171-19-03 |
ALLEN BOLT |
M6X20 |
2 |
Pcs. |
$1.50 |
| 4 |
A00492-19-08 |
CASE FLANGE BOLT |
M5X25 |
4 |
Pcs. |
$1.50 |
| 5 |
A00418-17-00 |
TRANSMISSION BOX COVER W/ BEARINGS |
6000 |
1 |
Pc. |
$23.00 |
| 6 |
A00202-17-00 |
TRANSMISSION BOX |
|
1 |
Pc. |
$56.00 |
| 7 |
A00295-14-00 |
REED CAGE |
|
1 |
Pc. |
$18.00 |
| 8 |
A00183-13-00 |
REED VALVE GASKET |
|
1 |
Pc. |
$2.50 |
| 9 |
A00493-19-02 |
ALLEN BOLT W/ LOCK+FLAT WASHER |
M5X35 |
4 |
Pcs. |
$1.50 |
| 10 |
A00991-09-00 |
FLYWHEEL |
|
1 |
Pc. |
$8.00 |
| 11 |
A02998-09-00 |
RIGHT CRANKCASE HALF |
|
1 |
Pc. |
$30.00 |
| 12 |
A00184-13-00 |
CENTER CRANKCASE GASKET |
|
1 |
Pc. |
$3.50 |
| 13 |
A00045-25-01 |
PIN |
5X10 |
2 |
Pcs. |
$1.50 |
| 14 |
A00453-19-03 |
HEX BOLT |
M6X16 |
2 |
Pcs. |
$4.00 |
| 15 |
A00092-21-01 |
WASHER |
6X18X2 |
2 |
Pcs. |
$1.50 |
| 16 |
A00021-28-01 |
WOODRUFF KEY |
|
1 |
Pc. |
$2.50 |
| 17 |
A00994-09-00 |
PISTON |
|
1 |
Pc. |
$33.00 |
| 18 |
A00995-09-00 |
PISTON RING SET |
|
1 |
Set |
$18.00 |
| 19 |
A03000-09-00 |
PISTON PIN |
|
1 |
Pc. |
$4.00 |
| 20 |
A03001-09-00 |
PISTON PIN CIRCLIP |
|
2 |
Pcs. |
$1.50 |
| 21 |
A00174-19-03 |
ALLEN BOLT W/ LOCK WASHER |
M5X20 |
4 |
Pcs. |
$1.50 |
| 22 |
A00494-19-02 |
ALLEN BOLT W/ LOCK+FLAT WASHER |
M5X20 |
4 |
Pcs. |
$1.50 |
| 23 |
A00180-13-00 |
INTAKE MANIFOLD GASKET |
|
1 |
Pc. |
$2.50 |
| 24 |
A00181-13-00 |
CYLINDER BASE GASKET |
|
1 |
Pc. |
$2.50 |
| 25 |
A00992-09-00 |
CYLINDER/HEAD |
|
1 |
Pc. |
$56.00 |
| 26 |
BM6A |
SPARK PLUG |
BM6A |
1 |
Pc. |
$9.00 |
| 27 |
A00253-12-00 |
CARBURETOR |
|
1 |
Pc. |
$42.00 |
| 28 |
A02483-09-00 |
CRANKSHAFT ASSY |
|
1 |
Assy. |
$45.00 |
| 29 |
A00180-28-00 |
NEEDLE BEARING |
|
1 |
Pc. |
$7.00 |
| 30 |
A00429-19-08 |
CASE FLANGE BOLT |
M6X60 |
2 |
Pcs. |
$2.00 |
| 31 |
A00400-19-X2 |
ALLEN BOLT W/ LOCK WASHER |
M5X55 |
3 |
Pcs. |
$1.50 |
| 32 |
A02999-09-00 |
LEFT CRANKCASE HALF |
|
1 |
Pc. |
$30.00 |
| 33 |
A01232-09-00 |
CLUTCH ASSY |
|
1 |
Assy. |
$33.00 |
| 34 |
A00354-07-00 |
COUNTERSHAFT SPROCKET |
11T |
1 |
Pc. |
$14.00 |
| 35 |
A00301-14-00 |
AIR FILTER ELEMENT - BUTTON |
42 |
1 |
Assy. |
$27.00 |
| 36 |
A00294-14-00 |
INTAKE INSULATOR |
|
1 |
Pc. |
$8.00 |
| 37 |
A00210-14-00 |
AIR FILTER ADAPTER |
|
1 |
Pc. |
$10.00 |
| 38 |
A02496-09-00 |
COMPLETE ENGINE ASSY |
|
1 |
Assy. |
$145.00 |
| 39 |
A00996-09-00 |
CRANKCASE |
NOT PICTURED |
1 |
Pc. |
$42.00 |
| 40 |
A00180-13-00 |
INTAKE INSULATOR GASKET |
NOT PICTURED |
1 |
Pc. |
$2.50 |
