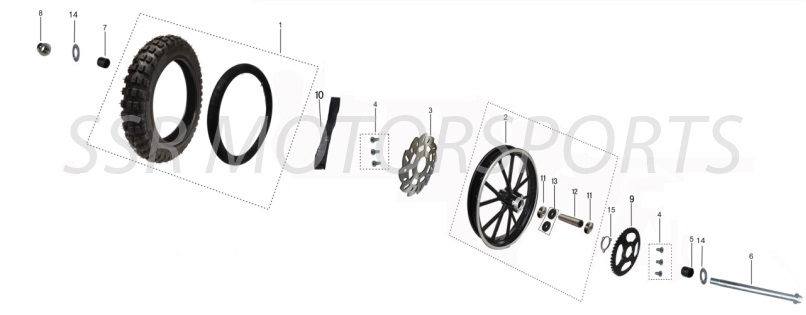

Rear Wheel Assembly
Click parts on table to add
| # | Part # | Description | Price | Qty |
|---|---|---|---|---|
| 1 | A00322-18-00 | FRONT/REAR TIRE 2.50-10 | $29.80 | 1 |
| 1-1 | A00219-18-00 | INNER TUBE 2.50-10 | $15.80 | 1 |
| 2 | A00564-18-00 | REAR WHEEL 1.75-10 BLACK/SILVER LIP | $42.00 | 1 |
| 3 | A00706-04-00 | FRONT/REAR BRAKE ROTOR | $18.00 | 1 |
| 4 | A00011-19-02 | ALLEN BOLT M6X16 | $2.00 | 6 |
| 5 | A00532-18-00 | WHEEL SPACER 12.4X15X12 | $2.50 | 1 |
| 6 | A00535-18-00 | REAR WHEEL AXLE M12X145 | $7.00 | 1 |
| 7 | A00530-18-00 | WHEEL SPACER 12.4X15X7 | $2.50 | 1 |
| 8 | A00333-22-03 | FLANGE NUT M12 | $2.00 | 1 |
| 9 | A00291-07-00 | REAR SPROCKET 54T | $18.00 | 1 |
| 10 | A00334-18-00 | RIM STRIP 10" | $6.10 | 1 |
| 11 | A00115-28-00 | WHEEL BEARING 6001RS | $6.10 | 2 |
| 12 | A00536-18-00 | REAR WHEEL BEARING SPACER 12.4X16X80.5 | $2.50 | 1 |
| 13 | A00534-18-00 | BUSHING 15X25X5 | $1.50 | 2 |
| 14 | A00263-21-01 | WASHER 12x24x2 | $1.50 | 2 |
| 15 | A00283-21-06 | SPROCKET WASHER 2021+ SX50-A | $2.00 | 1 |
