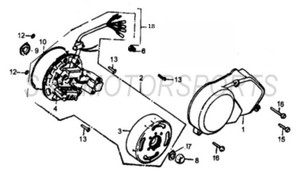

Left Engine Cover and Stator
Click parts on table to add
| # | Part # | Description | Price | Qty |
|---|---|---|---|---|
| 1 | A01214-09-00 | STATOR COVER | $56.00 | 1 |
| 2 | A02771-09-00 | STATOR W/ FLYWHEEL ASSY | $161.00 | 1 |
| 3 | A02772-09-00 | FLYWHEEL | $75.30 | 1 |
| 4 | A02773-09-00 | STATOR PLATE ASSY LIFAN | $101.50 | 1 |
| 6 | A02920-09-00 | RUBBER PLUG | $4.40 | 1 |
| 8 | A00004-22-04 | FLANGE NUT M10 | $2.00 | 1 |
| 9 | A00003-26-00 | OIL SEAL 18.9X30X5 | $4.40 | 1 |
| 10 | A00010-27-00 | O-RING 107X2 | $8.80 | 1 |
| 12 | A00012-27-00 | O-RING 6.5X1.9 | $2.00 | 2 |
| 13 | A00006-20-01 | PHILLIPS BOLT M6X12 | $2.00 | 1 |
| 14 | A00038-20-01 | SCREW M6X14 | $2.00 | 2 |
| 15 | A00422-19-08 | CASE FLANGE BOLT M6X28 | $2.00 | 1 |
| 16 | A00425-19-08 | CASE FLANGE BOLT M6X35 | $2.00 | 2 |
| 17 | A00002-21-01 | WASHER M10 | $2.00 | 1 |
