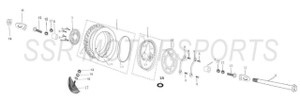

Rear Wheel
Click parts on table to add
| # | Part # | Description | Price | Qty |
|---|---|---|---|---|
| 1-1 | A00528-18-00 | REAR TIRE 80/100-12 | $42.00 | 1 |
| 1-2 | A00291-18-00 | INNER TUBE 80/100-12 | $21.00 | 1 |
| 1-3 | A00292-18-00 | RIM STRIP 12" | $6.10 | 1 |
| 2 | A00344-18-00 | REAR WHEEL ASSY 1.85-12 | $109.00 | 1 |
| 2-1 | A00345-18-00 | REAR RIM 1.85-12 | $57.80 | 1 |
| 2-2 | A00295-18-00 | REAR INNER SPOKE W/ NIPPLE | $2.50 | 16 |
| 2-3 | A00296-18-00 | REAR OUTER SPOKE W/ NIPPLE | $2.50 | 16 |
| 2-4 | A00346-18-00 | REAR WHEEL HUB | $101.50 | 1 |
| 3 | A00505-04-00 | REAR BRAKE ROTOR | $42.00 | 1 |
| 4 | A00034-19-10 | ROTOR BOLT M8X16 | $2.00 | 4 |
| 5 | A00347-18-00 | RIGHT REAR WHEEL SPACER | $6.10 | 1 |
| 6 | A00348-18-00 | REAR AXLE | $38.50 | 1 |
| 7 | A00349-18-00 | LEFT REAR WHEEL SPACER | $6.10 | 1 |
| 8 | A00029-19-03 | HEX BOLT M8X30 | $2.00 | 4 |
| 9 | A00296-07-00 | SPROCKET BOLT RETAINER PLATE | $8.80 | 2 |
| 10 | A00302-07-00 | REAR SPROCKET 420-41T | $49.00 | 1 |
| 11 | A00350-18-00 | CHAIN ADJUSTER PLATE | $8.80 | 2 |
| 12 | A00002-22-01 | NUT M8 | $2.00 | 4 |
| 13 | A00263-19-03 | BOLT M8X45 | $2.50 | 2 |
| 14 | A00003-22-01 | FLANGE LOCKNUT M14x1.5 | $2.60 | 1 |
| 15 | A00017-28-00 | BEARING 6202-RS | $8.00 | 2 |
