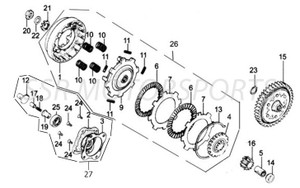

| NO. |
PART NUMBER |
DESCRIPTION |
RETAIL |
QTY |
| 1 |
A01317-09-01 |
CLUTCH HUB |
$49.00 |
1 |
| 2 |
A01318-09-00 |
CLUTCH LIFTER PLATE |
$19.30 |
1 |
| 3 |
A00121-13-00 |
CLUTCH LIFTER PLATE GASKET |
$8.80 |
1 |
| 4 |
A01319-09-00 |
CLUTCH DRIVE OUTER GEAR |
$24.50 |
1 |
| 5 |
A01271-09-00 |
PRIMARY DRIVE GEAR BUSHING |
$6.10 |
1 |
| 6 |
A01272-09-00 |
CLUTCH FRICTION PLATE |
$15.80 |
3 |
| 7 |
A01273-09-00 |
CLUTCH STEEL PLATE |
$12.30 |
3 |
| 9 |
A01275-09-00 |
CLUTCH HOLDER / PRESSURE PLATE HUB |
$31.50 |
1 |
| 10 |
A01276-09-00 |
CLUTCH SPRING |
$2.50 |
4 |
| 11 |
A01277-09-00 |
SECONDARY SPRING |
$2.00 |
4 |
| 12 |
A01278-09-00 |
CLUTCH PUSH ROD |
$6.10 |
1 |
| 13 |
A02380-09-00 |
CLUTCH SNAP RING |
$6.10 |
1 |
| 14 |
A01327-09-00 |
CLUTCH THRUST WASHER |
$3.50 |
1 |
| 15 |
A01301-09-00 |
PRIMARY DRIVE GEAR 67 TOOTH |
$24.50 |
1 |
| 16 |
A01302-09-00 |
PRIMARY DRIVE GEAR 18 TOOTH |
$19.30 |
1 |
| 17 |
A01279-09-00 |
CLUTCH COLLAR SPACER |
$2.00 |
1 |
| 18 |
A01280-09-00 |
CLUTCH RETURN SPRING |
$2.00 |
1 |
| 19 |
A01281-09-00 |
CLUTCH BUSHING |
$2.50 |
1 |
| 20 |
A01282-09-00 |
SPLINED LOCKNUT M14X1 |
$2.60 |
1 |
| 21 |
A01283-09-00 |
TONGUE LOCK WASHER M14 |
$2.60 |
1 |
| 22 |
A01284-09-00 |
DISHED THRUST WASHER |
$2.00 |
1 |
| 23 |
A01285-09-00 |
RETAINING CIRCLIP |
$2.00 |
1 |
| 24 |
A00020-20-05 |
CS SCREW M5X10 |
$2.00 |
4 |
| 25 |
A00009-28-00 |
BEARING 6000 SERIES |
$8.80 |
1 |
| 26 |
A02714-09-00 |
COMPLETE CLUTCH ASSEMBLY |
$117.30 |
1 |
| 27 |
A03016-09-00 |
CLUTCH LIFTER PLATE ASSEMBLY |
$35.00 |
1 |
