| NO. |
PART NUMBER |
DESCRIPTION |
RETAIL |
QTY |
| 1 |
A01219-09-00 |
RIGHT CRANKCASE HALF |
$108.50 |
1 |
| 2 |
A00122-13-00 |
CENTER CASE GASKET |
$15.80 |
1 |
| 3 |
A01220-09-00 |
LEFT CRANKCASE HALF |
$140.00 |
1 |
| 4 |
A01221-09-00 |
OIL PUMP ASSEMBLY |
$49.00 |
1 |
| 5 |
A00123-13-00 |
OIL PUMP GASKET |
$6.10 |
1 |
| 6 |
A01222-09-00 |
OIL PUMP BODY |
$21.00 |
1 |
| 7 |
A01225-09-00 |
OIL PUMP COVER |
$8.80 |
1 |
| 8 |
A00124-13-00 |
OIL PUMP COVER GASKET |
$4.40 |
1 |
| 9 |
A01226-09-00 |
OIL PUMP INNER ROTOR |
$8.80 |
1 |
| 10 |
A01227-09-00 |

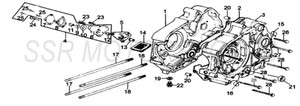

OIL PUMP OUTER ROTOR |
$8.80 |
1 |
| 11 |
A01228-09-00 |
OIL PUMP SHAFT |
$8.80 |
1 |
| 12 |
A01229-09-00 |
OIL PUMP SHAFT BUSHING |
$2.50 |
1 |
| 13 |
A01230-09-00 |
OIL PUMP SPROCKET BUSHING |
$2.50 |
1 |
| 14 |
A01098-09-00 |
OIL SCREEN |
$10.50 |
1 |
| 15 |
A02356-09-00 |
CRANKCASE VENT HOSE |
$10.50 |
1 |
| 16 |
A01100-09-00 |
STATOR WIRE RETAINER |
$2.00 |
1 |
| 17 |
A00003-19-04 |
CYLINDER STUD A (202MM) |
$8.80 |
2 |
| 18 |
A00002-19-04 |

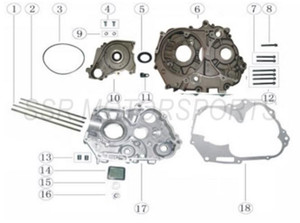

CYLINDER STUD B (197MM) |
$8.80 |
2 |
| 19 |
A00012-21-04 |
CRUSH WASHER 12X20X1.5 |
$2.00 |
1 |
| 20 |
A00002-23-00 |
DOWEL PIN M10X14 |
$2.00 |
2 |
| 21 |
A00002-26-00 |
OIL SEAL 11.6X24X10 |
$4.40 |
1 |
| 22 |
A01102-09-00 |
OIL DRAIN BOLT M12 |
$4.40 |
1 |
| 23 |
A00001-19-03 |
BOLT M6X16 |
$2.00 |
2 |
| 24 |
A00030-19-03 |
FLANGE BOLT M6X22 |
$2.00 |
1 |
| 25 |
A00037-19-01 |
FLANGE BOLT M5X10 |
$2.00 |
3 |
| 26 |
A00428-19-08 |
CASE FLANGE BOLT M6X50 |
$2.00 |
1 |
| 27 |
A00429-19-08 |
CASE FLANGE BOLT M6X60 |
$2.50 |
2 |
| 28 |
A00430-19-08 |
CASE FLANGE BOLT M6X65 |
$2.50 |
4 |
| 29 |
A01099-09-00 |
CRANKCASE VENT HOSE RETAINER |
$2.00 |
1 |
| 30 |
A01270-09-00 |

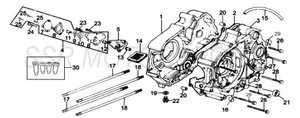

ENGINE MOUNT DAMPER SET (3 SHORT / 1 LONG) |
$6.10 |
1 |
