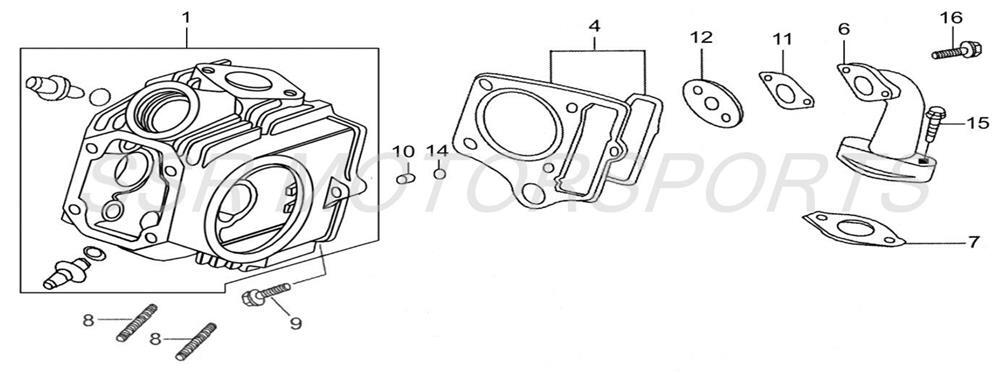

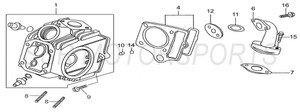

Cylinder Head
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A01180-09-00 | CYLINDER HEAD ASSY | W/ VALVES | 1 | Assy. | $124.00 |
| 2 | A01181-09-00 | INTAKE VALVE GUIDE | 1 | Pc. | $6.00 | |
| 3 | A01182-09-00 | EXHAUST VALVE GUIDE | 1 | Pc. | $6.00 | |
| 4 | A00288-13-00 | CYLINDER HEAD GASKET | 1 | Pc. | $11.00 | |
| 5 | A00131-13-00 | CHAIN CHAMBER GASKET | 1 | Pc. | $6.00 | |
| 6 | A00293-14-00 | INTAKE MANIFOLD | YX-02 | 1 | Pc. | $36.00 |
| 7 | A00292-14-00 | INTAKE MANIFOLD GASKET | 1 | Pc. | $4.00 | |
| 8 | A00001-19-04 | STUD | M6X32 | 2 | Pcs. | $1.50 |
| 9 | A00002-19-03 | BOLT | M6X23 | 1 | Pc. | $1.50 |
| 10 | A00118-23-00 | SPECIAL PIN | 8X11 | 1 | Pc. | $2.50 |
| 11 | A00274-13-00 | CARBURETOR GASKET | 1 | Pc. | $4.00 | |
| 12 | A00272-13-00 | INTAKE INSULATOR | M4.7 | 1 | Pc. | $6.00 |
| 13 | A00042-27-00 | O-RING | 9X1.6 | 2 | Pcs. | $1.50 |
| 14 | A00042-27-00 | O-RING | 9X1.6 | 1 | Pc. | $1.50 |
| 15 | A00422-19-08 | CASE FLANGE BOLT | M6X28 | 2 | Pcs. | $1.50 |
| 16 | A00024-19-01 | FLANGE BOLT | M6X22 | 2 | Pcs. | $1.50 |
