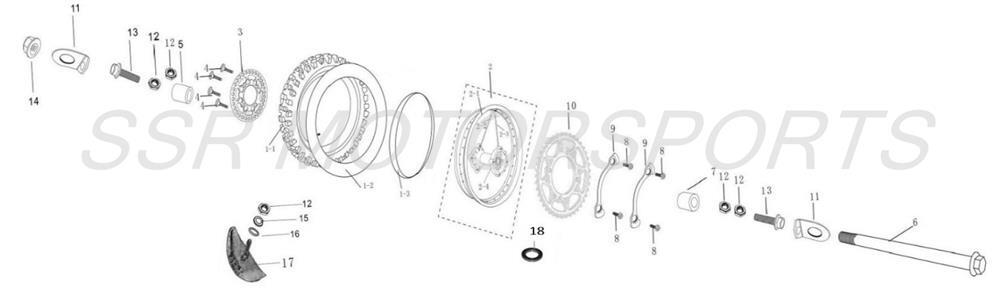

Rear Wheel
| NO. | PART NUMBER | DESCRIPTION | MODEL | RETAIL | QTY |
|---|---|---|---|---|---|
| 1-1 | A00528-18-00 | REAR TIRE 80/100-12 | TR140 | $42.00 | 1 |
| 1-1 | A00546-18-00 | REAR TIRE 90/100-14 | TR140BW | $40.30 | 1 |
| 1-2 | A00291-18-00 | INNER TUBE 80/100-12 | TR140 | $21.00 | 1 |
| 1-2 | A00547-18-00 | INNER TUBE 90/100-14 | TR140BW | $19.30 | 1 |
| 1-3 | A00292-18-00 | RIM STRIP 12" | TR140 | $6.10 | 1 |
| 1-3 | A00400-18-00 | RIM STRIP 14" | TR140BW | $6.10 | 1 |
| 2 | A00636-18-00 | REAR WHEEL ASSY 1.85-12 | TR140 | $109.00 | 1 |
| 2 | A00634-18-00 | REAR WHEEL ASSY 14" | TR140BW | $109.00 | 1 |
| 2-2 | A00295-18-00 | INNER SPOKE 129 | TR140 | $2.50 | 16 |
| 2-2 | A00551-18-00 | INNER SPOKE 153 | TR140BW | $2.50 | 16 |
| 2-3 | A00296-18-00 | OUTER SPOKE 133 | TR140 | $2.50 | 16 |
| 2-3 | A00552-18-00 | OUTER SPOKE 156 | TR140BW | $2.50 | 16 |
| 2-4 | A00346-18-00 | REAR HUB (TR140) | TR140 | $101.50 | 1 |
| 2-4 | A00297-18-00 | REAR HUB (TR140BW) | TR140BW | $101.50 | 1 |
| 3 | A00505-04-00 | REAR BRAKE ROTOR | BOTH | $42.00 | 1 |
| 4 | A00034-19-10 | ROTOR BOLT | BOTH | $2.00 | 4 |
| 6 | A00348-18-00 | REAR AXLE | BOTH | $38.50 | 1 |
| 14 | A00003-22-01 | FLANGE LOCKNUT | BOTH | $2.60 | 1 |
| 18 | A00017-28-00 | BEARING 6202-RS | BOTH | $8.00 | 2 |
