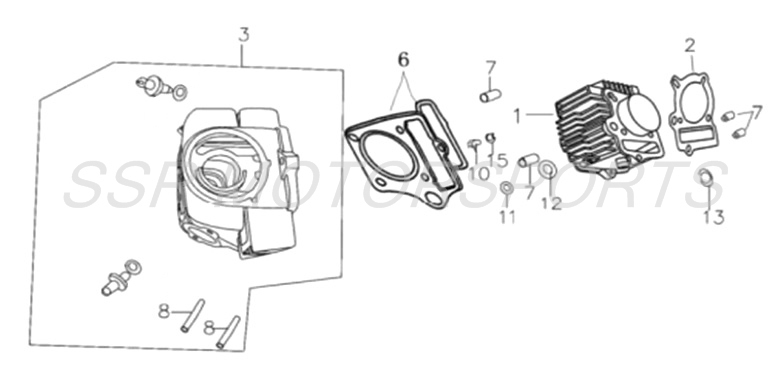

Cylinder Head & Cylinder
| NO. | PART NUMBER | DESCRIPTION | RETAIL | QTY |
|---|---|---|---|---|
| 1 | A01643-09-00 | CYLINDER | $127.80 | 1 |
| 2 | A00160-13-00 | CYLINDER BASE GASKET | $12.30 | 1 |
| 3 | A01644-09-00 | CYLINDER HEAD ASSY W/ VALVES | $257.30 | 1 |
| 4 | A01645-09-00 | INTAKE GUIDE | $7.00 | 1 |
| 5 | A01646-09-00 | EXHAUST GUIDE | $7.00 | 1 |
| 6 | A00161-13-00 | CYLINDER HEAD GASKET | $10.50 | 1 |
| 7 | A00017-23-00 | DOWEL PIN 10X12 | $2.00 | 4 |
| 8 | A00019-19-04 | STUD M6X38 | $2.00 | 2 |
| 9 | A01769-09-00 | BOLT | $2.00 | 3 |
| 10 | A00118-23-00 | SPECIAL PIN 8X11 | $2.60 | 1 |
| 11 | A00112-21-01 | O-RING 8X10.8X1.5 | $2.00 | 1 |
| 12 | A00008-27-00 | O-RING 14.5X18.5X2.4 | $2.00 | 1 |
| 13 | A00009-27-00 | O-RING 11.5X2.5 | $2.00 | 1 |
| 14 | A00042-27-00 | O-RING 9X1.6 | $2.00 | 2 |
| 15 | A01647-09-00 | SEAL | $2.00 | 1 |
