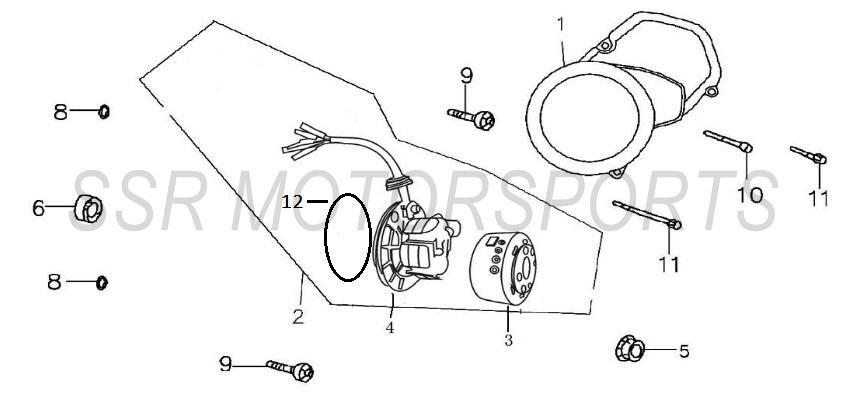

Left Engine Cover and Stator
| NO. | PART NUMBER | DESCRIPTION | RETAIL | QTY |
|---|---|---|---|---|
| 1 | A01706-09-00 | LEFT ENGINE COVER | $82.30 | 1 |
| 2 | A02922-09-00 | STATOR W/ FLYWHEEL ASSY (5 POLE) | $161.00 | 1 |
| 3 | A02921-09-00 | FLYWHEEL (5 POLE) | $75.30 | 1 |
| 4 | A02910-09-00 | STATOR PLATE ASSY (5 POLE) | $101.50 | 1 |
| 5 | A00004-22-08 | SPECIAL NUT M10 | $2.00 | 1 |
| 6 | A00003-26-00 | OIL SEAL 18.9X30X5 | $4.40 | 1 |
| 8 | A00012-27-00 | O-RING 6.5X1.9 | $2.00 | 2 |
| 9 | A00025-19-01 | FLANGE BOLT M6X14 | $2.00 | 2 |
| 10 | A00422-19-08 | CASE FLANGE BOLT M6X28 | $2.00 | 1 |
| 11 | A00425-19-08 | CASE FLANGE BOLT M6X35 | $2.00 | 2 |
| 12 | A00010-27-00 | O-RING 107X2 | $8.80 | 1 |
| 13 | A00258-13-00 | STATOR COVER GASKET | $10.50 | 1 |
