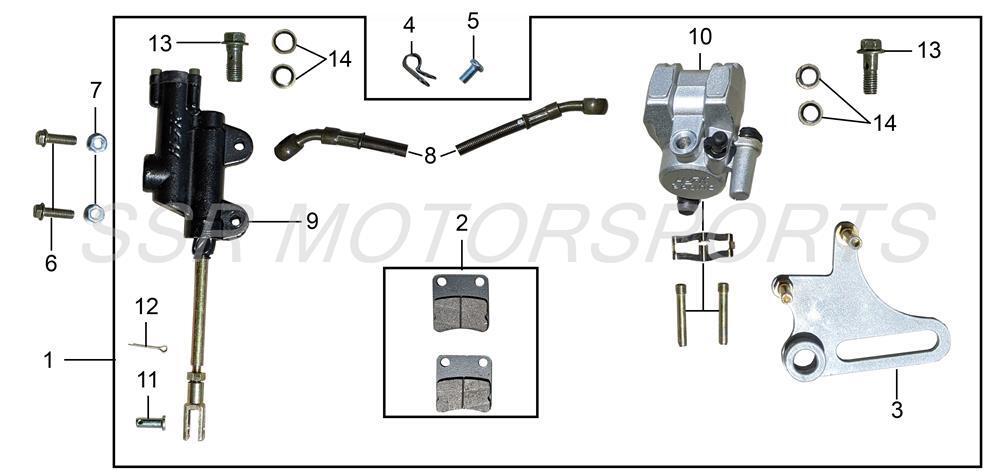

Rear Brake System
| NO. | PART NUMBER | DESCRIPTION | RETAIL | QTY |
|---|---|---|---|---|
| 1 | A00500-04-00 | REAR BRAKE ASSY (INCLUDES PADS) | $105.00 | 1 |
| 2 | A00478-04-00 | REAR BRAKE PAD SET | $21.00 | 1 |
| 3 | A00502-04-00 | REAR CALIPER BRACKET | $26.30 | 1 |
| 4 | A00523-04-00 | BRAKE HOSE RETAINER | $2.50 | 2 |
| 5 | A00031-19-01 | FLANGE BOLT M6X12 | $2.00 | 2 |
| 6 | A00418-19-08 | CASE FLANGE BOLT M6X20 | $2.00 | 2 |
| 7 | A00093-22-03 | FLANGE NUT M6 | $2.00 | 2 |
| 8 | A00554-04-00 | REAR BRAKE HOSE | $24.50 | 1 |
| 9 | A00585-04-00 | REAR MASTER CYLINDER ASSY | $91.00 | 1 |
| 10 | A00586-04-00 | REAR CALIPER ASSY | $101.50 | 1 |
| 11 | A00417-04-00 | REAR BRAKE PIN | $2.00 | 1 |
| 12 | A00007-25-01 | COTTER PIN | $2.00 | 1 |
| 13 | A00675-04-00 | BANJO BOLT M8 | $2.50 | 2 |
| 14 | A00676-04-00 | SEALING WASHER M8 | $2.00 | 4 |
