Rear Wheel
⚠️ Rotor Fitment:
TR160 → A00505-04-00
TR170 (2020+ SR170TR/TX) → A00724-04-00
TR160 → A00505-04-00
TR170 (2020+ SR170TR/TX) → A00724-04-00

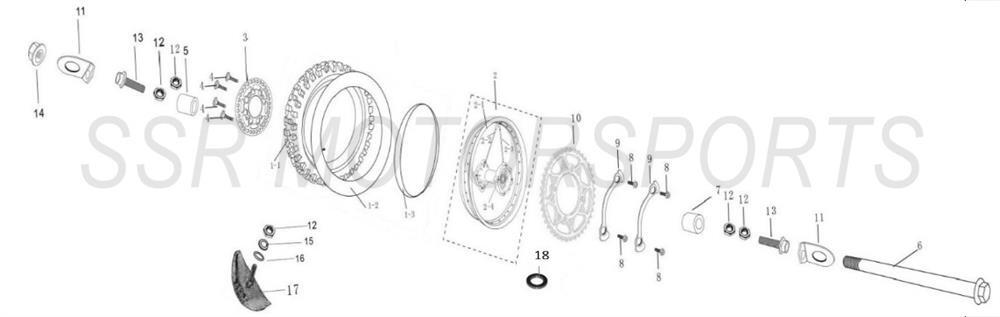

| NO. | PART NUMBER | DESCRIPTION | RETAIL | QTY |
|---|---|---|---|---|
| 1-1 | A00528-18-00 | REAR TIRE 80/100-12 | $42.00 | 1 |
| 1-2 | A00291-18-00 | INNER TUBE | $21.00 | 1 |
| 1-3 | A00292-18-00 | RIM STRIP 12" | $6.10 | 1 |
| 2 | A00636-18-00 | REAR WHEEL ASSY | $109.00 | 1 |
| 2-2 | A00295-18-00 | INNER SPOKES | $2.50 | 16 |
| 2-3 | A00296-18-00 | OUTER SPOKES | $2.50 | 16 |
| 2-4 | A00346-18-00 | REAR HUB | $101.50 | 1 |
| 3 | A00505-04-00 | REAR BRAKE ROTOR (TR160) | $42.00 | 1 |
| 3 | A00724-04-00 | REAR BRAKE ROTOR (TR170 2020+) | $36.80 | 1 |
| 4 | A00034-19-10 | ROTOR BOLTS | $2.00 | 4 |
| 5 | A00347-18-00 | RIGHT SPACER | $6.10 | 1 |
| 6 | A00348-18-00 | REAR AXLE | $38.50 | 1 |
| 7 | A00349-18-00 | LEFT SPACER | $6.10 | 1 |
| 8 | A00029-19-03 | BOLTS M8X30 | $2.00 | 4 |
| 9 | A00296-07-00 | SPROCKET RETAINER | $8.80 | 2 |
| 10 | A00302-07-00 | REAR SPROCKET 41T | $49.00 | 1 |
| 11 | A00350-18-00 | CHAIN ADJUSTERS | $8.80 | 2 |
| 12 | A00002-22-01 | NUT M8 | $2.00 | 5 |
| 13 | A00014-19-01 | FLANGE BOLT M8X40 | $2.50 | 2 |
| 14 | A00003-22-01 | AXLE NUT M14 | $2.60 | 1 |
| 15 | A00001-21-02 | LOCK WASHER | $2.00 | 1 |
| 16 | A00013-21-01 | WASHER | $2.00 | 1 |
| 17 | A00352-18-00 | RIM LOCK | $8.80 | 1 |
| 18 | A00017-28-00 | BEARING 6202-2RS | $8.00 | 2 |
