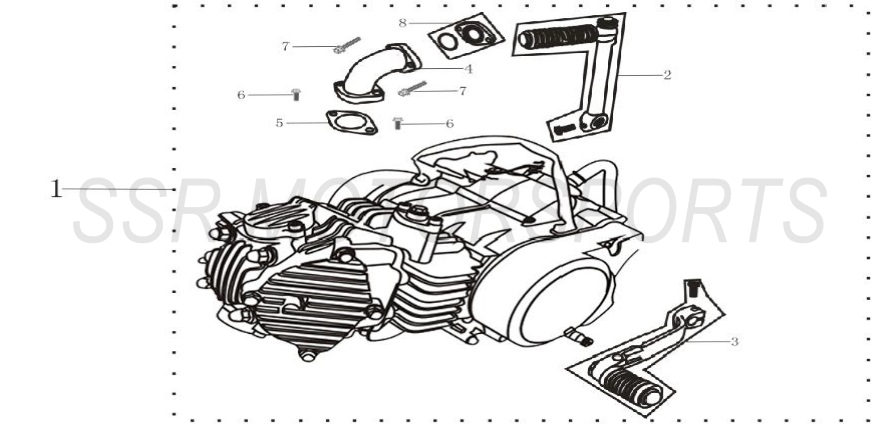

Engine Assembly
CLICK PARTS TO ADD TO REQUEST
| NO. | PART NUMBER | DESCRIPTION | RETAIL | QTY |
|---|---|---|---|---|
| 1A | A01764-09-00 | ENGINE ASSY TX160 | $699.00 | 1 |
| 1B | A01474-09-00 | ENGINE ASSY TX170 | $759.00 | 1 |
| 2 | A00388-05-00 | KICKSTARTER LEVER | $29.80 | 1 |
| 3 | A00389-05-00 | SHIFTER LEVER ASSY | $31.50 | 1 |
| 4A | A00235-14-00 | INTAKE MANIFOLD TX160 | $42.00 | 1 |
| 4B | A02731-09-00 | INTAKE MANIFOLD TX170 | $42.00 | 1 |
| 5 | A00168-13-00 | INTAKE MANIFOLD GASKET | $3.50 | 1 |
| 6 | A00040-19-01 | FLANGE BOLT M6X28 | $2.00 | 2 |
| 7 | A00001-19-01 | FLANGE BOLT M6X30 | $2.00 | 2 |
| 8 | A00236-14-00 | INSULATOR W/ O-RING | $8.80 | 1 |
