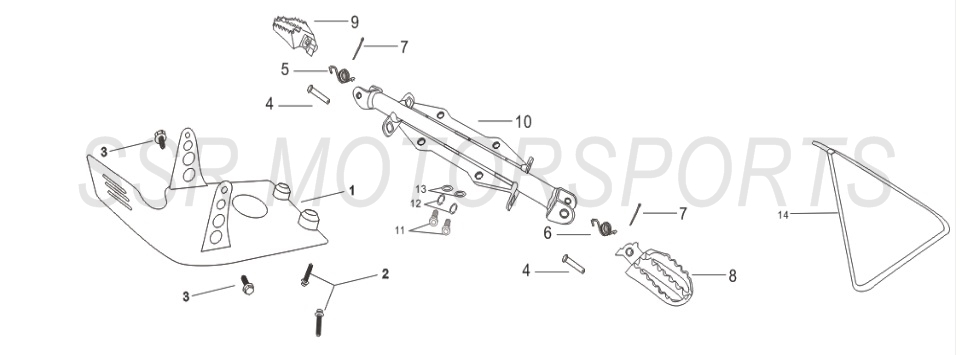

Footpegs, Skid Plate & Skid Plate
CLICK PARTS TO ADD TO REQUEST
| NO. | PART NUMBER | DESCRIPTION | RETAIL | QTY |
|---|---|---|---|---|
| 1 | A00410-11-00 | SKID PLATE | $68.30 | 1 |
| 2 | A00049-19-01 | FLANGE BOLT M8X35 | $2.50 | 2 |
| 3 | A00418-19-08 | CASE FLANGE BOLT M6X16 | $2.00 | 2 |
| 4 | A00336-05-00 | FOOTPEG PIVOT PIN | $2.00 | 2 |
| 5 | A00335-05-00 | RIGHT FOOTPEG SPRING | $2.00 | 1 |
| 6 | A00334-05-00 | LEFT FOOTPEG SPRING | $2.00 | 1 |
| 7 | A00019-28-01 | COTTER PIN | $2.00 | 2 |
| 8 | A00332-05-00 | LEFT FOOTPEG | $21.00 | 1 |
| 9 | A00330-05-00 | RIGHT FOOTPEG | $21.00 | 1 |
| 10 | A00395-05-00 | FOOTPEG BRACKET | $31.50 | 1 |
| 11 | A00125-19-02 | ALLEN BOLT M8X25 | $2.00 | 2 |
| 12 | A00005-21-04 | LOCK WASHER | $2.00 | 2 |
| 13 | A00004-21-01 | WASHER M8 | $2.00 | 2 |
| 14 | A00396-05-00 | TRIANGLE SIDE STAND | $38.50 | 1 |
