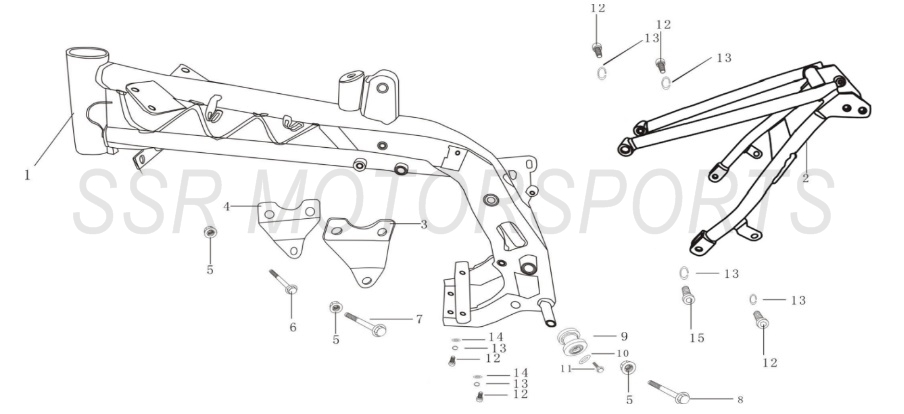

Frame
⚠️ CLICK PARTS TO ADD — VERIFY MODEL (TX160 vs TX170)
| NO. | PART NUMBER | DESCRIPTION | RETAIL | QTY |
|---|---|---|---|---|
| 1 | A00411-11-00 | FRAME (TX160 ONLY) | $279.00 | 1 |
| 1B | A00593-11-00 | FRAME (TX170 ONLY) | $283.50 | 1 |
| 2 | A00422-11-00 | SUBFRAME (TX160 ONLY) | $194.30 | 1 |
| 2B | A00412-11-00 | SUBFRAME (TX170 ONLY) | $194.30 | 1 |
| 3 | A00413-11-00 | LEFT MOTOR MOUNT BRACKET | $19.30 | 1 |
| 4 | A00414-11-00 | RIGHT MOTOR MOUNT BRACKET | $19.30 | 1 |
| 5 | A00100-22-34 | FLANGE LOCKNUT M8 | $2.00 | 3 |
| 6 | A00009-19-01 | FLANGE BOLT M8X75 | $2.50 | 1 |
| 7 | A00043-19-01 | FLANGE BOLT M8X115 | $2.60 | 1 |
| 8 | A00023-19-03 | FLANGE BOLT M8X105 | $2.60 | 1 |
| 9 | A00367-11-00 | CHAIN ROLLER | $8.80 | 1 |
| 10 | A00014-21-01 | WASHER M10X20X2 | $2.00 | 1 |
| 11 | A00031-19-01 | FLANGE BOLT M6X12 | $2.00 | 1 |
| 12 | A00007-19-02 | ALLEN BOLT M8X40 | $2.00 | 5 |
| 13 | A00001-21-02 | LOCK WASHER | $2.00 | 5 |
| 14 | A00013-21-01 | WASHER | $2.00 | 2 |
| 15 | A00044-19-02 | ALLEN BOLT M8X35 | $2.00 | 1 |
