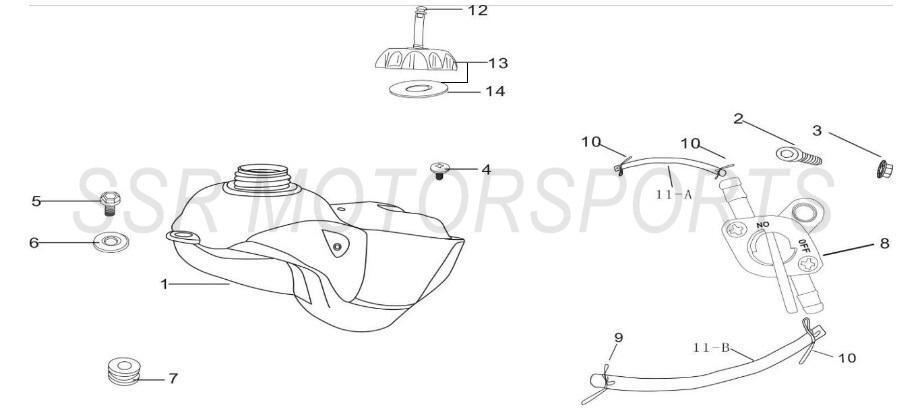

Fuel Tank
CLICK PARTS TO ADD TO REQUEST
| NO. | PART NUMBER | DESCRIPTION | RETAIL | QTY |
|---|---|---|---|---|
| 1 | A00353-12-00 | FUEL TANK BLACK | $64.80 | 1 |
| 2 | A00008-19-02 | ALLEN BOLT M6X20 | $2.00 | 1 |
| 3 | A00093-22-03 | FLANGE NUT M6 | $2.00 | 1 |
| 4 | A00006-20-01 | PHILLIPS BOLT M6X12 | $2.00 | 1 |
| 5 | A00007-19-01 | FLANGE BOLT M8X25 | $2.00 | 1 |
| 6 | A00012-21-01 | FENDER WASHER 8X28X1.5 | $2.00 | 1 |
| 7 | A00356-12-00 | RUBBER GROMMET | $2.00 | 1 |
| 8 | A00338-12-00 | FUEL PETCOCK | $26.30 | 1 |
| 9 | A00001-24-03 | WIRE HOSE CLAMP 10 | $2.00 | 1 |
| 10 | A00002-24-03 | WIRE HOSE CLAMP 7.5 | $2.00 | 5 |
| 11 | A00360-12-00 | FUEL HOSE SET | $6.10 | 1 |
| 12 | A00332-12-00 | FUEL TANK CAP VENT | $6.10 | 1 |
| 13 | A00343-12-00 | FUEL TANK CAP BILLET ALUMINUM | $38.50 | 1 |
| 14 | A00355-12-00 | FUEL TANK CAP SEAL | $6.10 | 1 |
