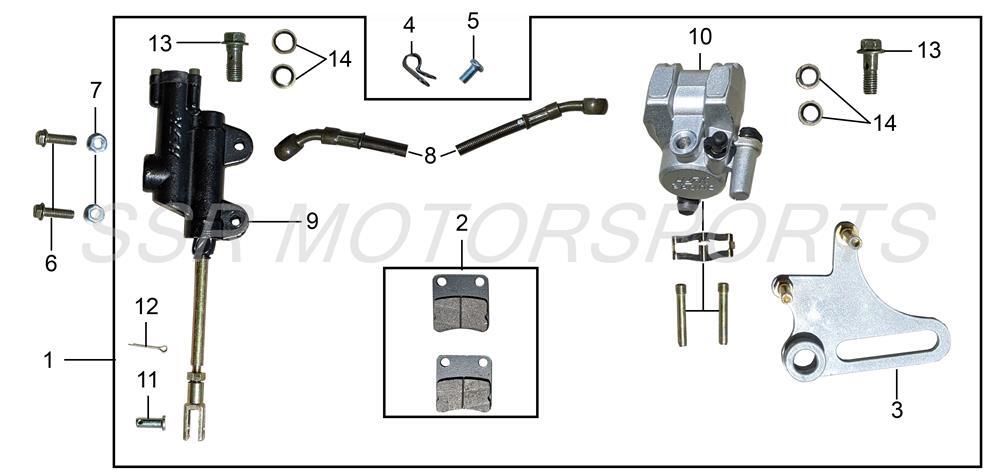

Rear Brake System
CLICK PARTS ON TABLE TO ADD
| NO. | PART NUMBER | DESCRIPTION | RETAIL | QTY |
|---|---|---|---|---|
| 1 | A00510-04-00 | REAR BRAKE ASSY L=560 | $105.00 | 1 |
| 2 | A00478-04-00 | REAR BRAKE PAD SET | $21.00 | 1 |
| 3 | A00512-04-00 | REAR BRAKE CALIPER BRACKET 190 | $26.30 | 1 |
| 4 | A00523-04-00 | BRAKE HOSE RETAINER | $2.50 | 2 |
| 5 | A00488-19-20 | PHILLIPS BOLT M6X12 | $2.00 | 2 |
| 6 | A00418-19-08 | CASE FLANGE BOLT M6X16 | $2.00 | 2 |
| 7 | A00093-22-03 | FLANGE NUT M6 | $2.00 | 2 |
| 8 | A00554-04-00 | REAR BRAKE HOSE | $24.50 | 1 |
| 9 | A00585-04-00 | REAR BRAKE MASTER CYLINDER ASSY | $91.00 | 1 |
| 10 | A00579-04-00 | REAR BRAKE CALIPER | $101.50 | 1 |
| 11 | A00417-04-00 | REAR BRAKE PIN | $2.00 | 1 |
| 12 | A00007-25-01 | COTTER PIN | $2.00 | 1 |
| 13 | A00675-04-00 | BANJO BOLT M8 | $2.50 | 2 |
| 14 | A00676-04-00 | SEALING WASHER M8 | $2.00 | 4 |
Selected Parts
