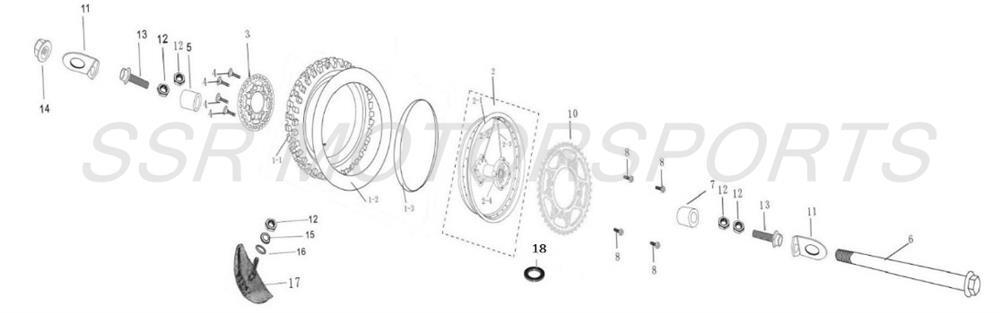

Rear Wheel
CLICK PARTS ON TABLE TO ADD
| NO. | PART NUMBER | DESCRIPTION | RETAIL | QTY |
|---|---|---|---|---|
| 1-1 | A00452-18-00 | REAR TIRE 80/100-12 | $64.80 | 1 |
| 1-2 | A00291-18-00 | INNER TUBE 80/100-12 | $21.00 | 1 |
| 1-3 | A00292-18-00 | RIM STRIP 12" | $6.10 | 1 |
| 2 | A00516-18-00 | REAR WHEEL ASSY | $129.00 | 1 |
| 2-2 | A00295-18-00 | REAR INNER SPOKE | $2.50 | 16 |
| 2-3 | A00296-18-00 | REAR OUTER SPOKE | $2.50 | 16 |
| 2-4 | A00346-18-00 | REAR WHEEL HUB | $101.50 | 1 |
| 3 | A00515-04-00 | REAR BRAKE ROTOR | $36.80 | 1 |
| 3B | A00724-04-00 | REAR BRAKE ROTOR (2020+ TX170) | $36.80 | 1 |
| 4 | A00034-19-10 | ROTOR BOLT | $2.00 | 4 |
| 5 | A00347-18-00 | RIGHT REAR SPACER | $6.10 | 1 |
| 6 | A00348-18-00 | REAR AXLE | $38.50 | 1 |
| 7 | A00349-18-00 | LEFT REAR SPACER | $6.10 | 1 |
| 8 | A00007-19-01 | FLANGE BOLT M8X25 | $2.00 | 4 |
| 10 | A00385-07-00 | REAR SPROCKET 41T | $101.50 | 1 |
| 11 | A00350-18-00 | CHAIN ADJUSTER PLATE | $8.80 | 2 |
| 12 | A00002-22-01 | NUT M8 | $2.00 | 5 |
| 13 | A00263-19-03 | BOLT M8X45 | $2.50 | 2 |
| 14 | A00003-22-01 | FLANGE LOCKNUT M14 | $2.60 | 1 |
| 15 | A00001-21-02 | LOCK WASHER | $2.00 | 1 |
| 16 | A00013-21-01 | WASHER | $2.00 | 1 |
| 17 | A00352-18-00 | RIM LOCK | $8.80 | 1 |
| 18 | A00017-28-00 | BEARING 6202-RS | $8.00 | 2 |
