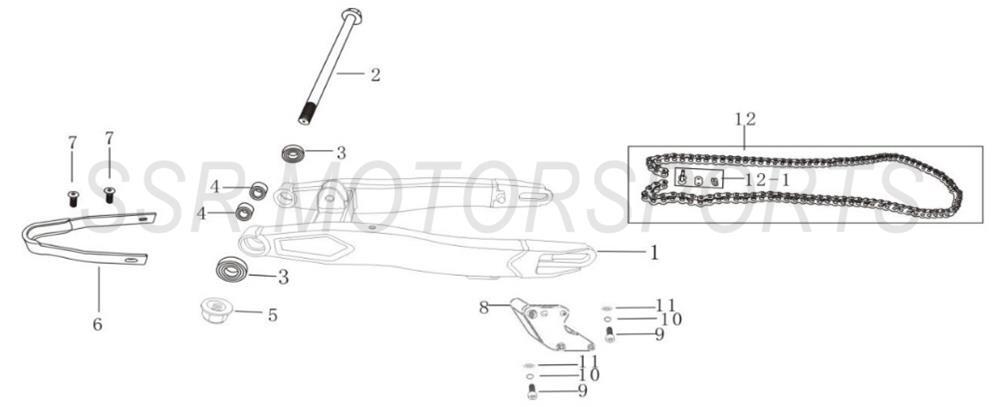

Swingarm
CLICK PARTS TO ADD TO REQUEST
| NO. | PART NUMBER | DESCRIPTION | RETAIL | QTY |
|---|---|---|---|---|
| 1 | A00416-11-00 | SWINGARM 420MM | $231.00 | 1 |
| 2 | A00369-11-00 | SWINGARM AXLE | $10.50 | 1 |
| 3 | A00011-28-00 | BEARING 6200Z | $8.80 | 2 |
| 4 | A00406-11-00 | BUSHING / SLEEVE | $6.10 | 2 |
| 5 | A00004-22-34 | FLANGE LOCKNUT M10 | $2.50 | 1 |
| 6 | A00545-11-00 | CHAIN SLIDER | $19.30 | 1 |
| 7 | A00006-20-12 | CS SCREW M6X12 | $2.00 | 2 |
| 8 | A00409-11-00 | LOWER CHAIN GUIDE | $24.50 | 1 |
| 9 | A00251-19-02 | ALLEN BOLT M8X20 | $2.00 | 2 |
| 10 | A00001-21-02 | LOCK WASHER | $2.00 | 2 |
| 11 | A00013-21-01 | WASHER | $2.00 | 2 |
| 12A | A00396-07-00 | DRIVE CHAIN 420-108L GOLD/BLACK | $66.50 | 1 |
| 12B | A00397-07-00 | DRIVE CHAIN 420-108L GOLD/GOLD | $66.50 | 1 |
| 12-1 | A00287-07-00 | CLIP LINK 420 | $6.10 | 1 |
