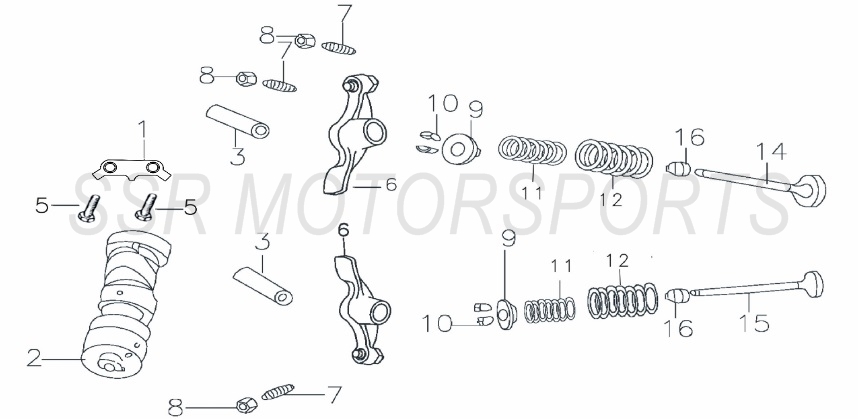

Camshaft (TX160)
CLICK PARTS ON TABLE TO ADD
| NO. | PART NUMBER | DESCRIPTION | RETAIL | QTY |
|---|---|---|---|---|
| 1 | A01774-09-00 | ROCKERARM SHAFT RETAINER PLATE | $6.10 | 1 |
| 2 | A01775-09-00 | CAMSHAFT | $101.50 | 1 |
| 3 | A01776-09-00 | ROCKERARM SHAFT | $6.10 | 2 |
| 5 | A00145-19-03 | BOLT | $2.00 | 2 |
| 6 | A01777-09-00 | ROCKER ARM | $29.80 | 2 |
| 7 | A01778-09-00 | VALVE ADJUSTING SCREW | $2.50 | 2 |
| 8 | A01779-09-00 | LOCKNUT | $2.50 | 2 |
| 9 | A01780-09-00 | UPPER VALVE SPRING RETAINER | $8.00 | 2 |
| 10 | A01781-09-00 | COLLET | $2.50 | 4 |
| 11 | A01782-09-00 | INNER VALVE SPRING | $6.10 | 2 |
| 12 | A01783-09-00 | OUTER VALVE SPRING | $6.10 | 2 |
| 14 | A01784-09-00 | INTAKE VALVE | $19.30 | 1 |
| 15 | A01785-09-00 | EXHAUST VALVE | $19.30 | 1 |
| 16 | A01786-09-00 | VALVE STEM SEAL | $4.40 | 2 |
Selected Parts
