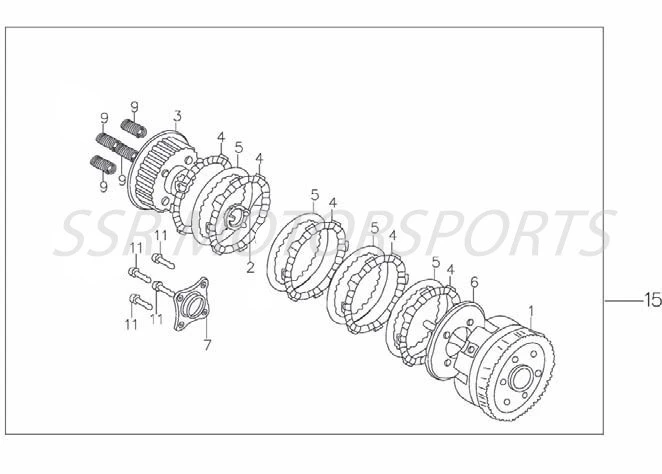

Clutch (TX160)
CLICK PARTS ON TABLE TO ADD
| NO. | PART NUMBER | DESCRIPTION | RETAIL | QTY |
|---|---|---|---|---|
| 1 | A01829-09-00 | CLUTCH BASKET | $68.30 | 1 |
| 2 | A01830-09-00 | HOLDING RING | $8.80 | 1 |
| 3 | A01831-09-00 | CLUTCH HUB | $42.00 | 1 |
| 4 | A01832-09-00 | CLUTCH FRICTION PLATE | $15.80 | 5 |
| 5 | A01833-09-00 | CLUTCH STEEL PLATE | $10.50 | 4 |
| 6 | A01834-09-00 | CLUTCH PRESSURE PLATE | $31.50 | 1 |
| 7 | A01835-09-00 | CLUTCH SPRING RETAINER | $19.30 | 1 |
| 8 | A00120-28-00 | BEARING | $8.80 | 1 |
| 9 | A01836-09-00 | CLUTCH SPRING | $2.50 | 4 |
| 10 | A01837-09-00 | CLUTCH PUSH ROD | $6.10 | 1 |
| 11 | A00024-19-01 | FLANGE BOLT M6X22 | $2.00 | 4 |
| 12 | A00034-22-01 | NUT | $2.60 | 1 |
| 13 | A00118-21-01 | WASHER | $2.00 | 1 |
| 14 | A01838-09-00 | SPLINED SHAFT WASHER | $2.60 | 1 |
| 15 | A01839-09-00 | CLUTCH ASSY | $143.50 | 1 |
