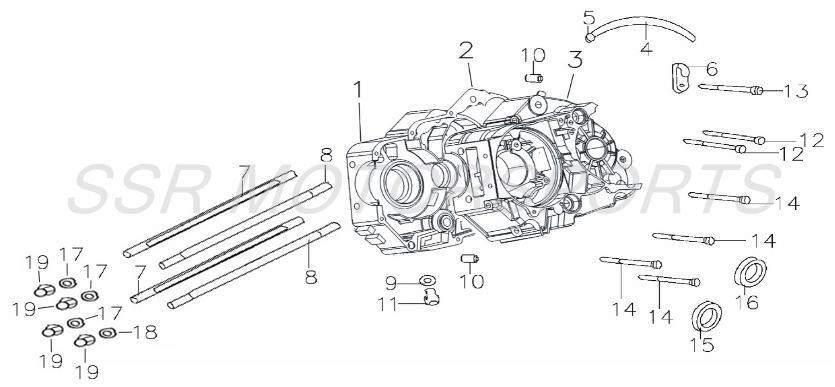

Crankcase (TX160)
CLICK PARTS ON TABLE TO ADD
| NO. | PART NUMBER | DESCRIPTION | RETAIL | QTY |
|---|---|---|---|---|
| 1 | A01794-09-00 | RIGHT CRANKCASE HALF | $157.50 | 1 |
| 2 | A00177-13-00 | CENTER CASE GASKET | $17.50 | 1 |
| 3 | A01795-09-00 | LEFT CRANKCASE HALF | $187.30 | 1 |
| 4 | A01796-09-00 | BREATHER HOSE | $10.50 | 1 |
| 5 | A00067-24-03 | WIRE HOSE CLAMP 15 | $2.60 | 1 |
| 6 | A01797-09-00 | VENT HOSE CLAMP | $2.00 | 1 |
| 7 | A00146-19-04 | CYLINDER STUD A | $12.30 | 2 |
| 8 | A00147-19-04 | CYLINDER STUD B | $12.30 | 2 |
| 9 | A00012-21-04 | CRUSH WASHER 12X20X1.5 | $2.00 | 1 |
| 10 | A00002-23-00 | DOWEL PIN M10X14 | $2.00 | 2 |
| 11 | A01102-09-00 | OIL DRAIN BOLT M12 | $4.40 | 1 |
| 12 | A00429-19-08 | CASE FLANGE BOLT M6X60 | $2.50 | 2 |
| 13 | A00432-19-08 | CASE FLANGE BOLT M6X85 | $2.50 | 1 |
| 14 | A00430-19-08 | CASE FLANGE BOLT M6X65 | $2.50 | 4 |
| 15 | A00002-26-00 | OIL SEAL 11.6X24X10 | $4.40 | 1 |
| 16 | A00001-26-00 | OIL SEAL 17X29X5 | $4.40 | 1 |
| 17 | A00004-21-01 | WASHER M8 | $2.00 | 3 |
| 18 | A00264-21-01 | COPPER WASHER M8X18X2 | $2.00 | 1 |
| 19 | A00004-22-36 | FLANGE CAP NUT M8 | $2.00 | 4 |
