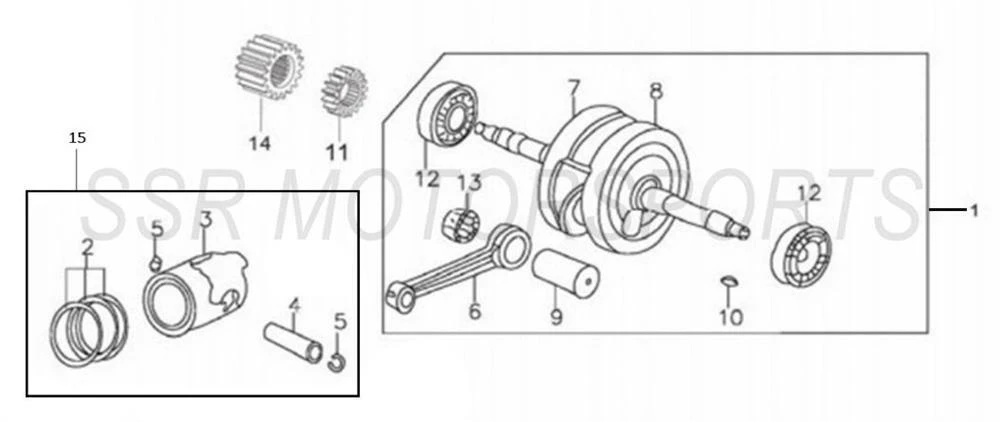

Crankshaft (TX160)
CLICK PARTS ON TABLE TO ADD
| NO. | PART NUMBER | DESCRIPTION | RETAIL | QTY |
|---|---|---|---|---|
| 1 | A01800-09-00 | CRANKSHAFT ASSY | $210.00 | 1 |
| 2 | A01801-09-00 | PISTON RING SET | $68.30 | 1 |
| 3 | A01802-09-00 | PISTON | $68.30 | 1 |
| 4 | A01803-09-00 | PISTON PIN | $6.10 | 1 |
| 5 | A01804-09-00 | PISTON PIN CIRCLIP | $2.00 | 2 |
| 6 | A01805-09-00 | CONNECTING ROD | $12.30 | 1 |
| 7 | A01806-09-00 | RIGHT CRANKSHAFT HALF | $103.30 | 1 |
| 8 | A01807-09-00 | LEFT CRANKSHAFT HALF | $103.30 | 1 |
| 9 | A01808-09-00 | CRANK PIN | $6.10 | 1 |
| 10 | A01809-09-00 | WOODRUFF KEY | $2.00 | 1 |
| 11 | A01810-09-00 | OIL PUMP DRIVEN GEAR | $10.50 | 1 |
| 12 | A00062-28-00 | BEARING 63/22 | $12.30 | 2 |
| 13 | A00119-28-00 | BEARING | $8.80 | 1 |
| 14 | A01811-09-00 | PRIMARY DRIVEN GEAR | $24.50 | 1 |
| 15 | A02489-09-00 | PISTON KIT | $140.00 | 1 |
