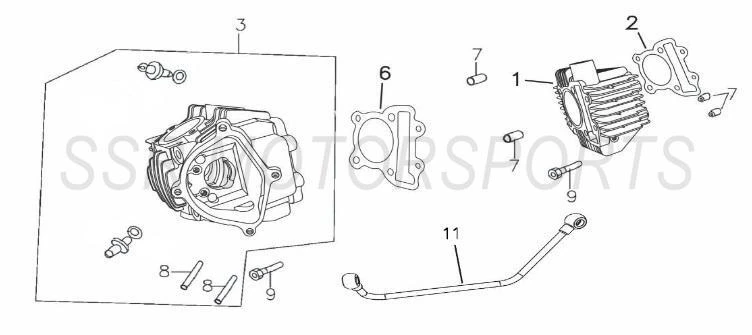

Cylinder Head & Cylinder (TX160)
CLICK PARTS ON TABLE TO ADD
| NO. | PART NUMBER | DESCRIPTION | RETAIL | QTY |
|---|---|---|---|---|
| 1 | A01765-09-00 | CYLINDER | $143.50 | 1 |
| 2 | A00170-13-00 | CYLINDER BASE GASKET | $12.30 | 1 |
| 3 | A01766-09-00 | CYLINDER HEAD ASSY W/O VALVES | $336.00 | 1 |
| 6 | A00171-13-00 | CYLINDER HEAD GASKET | $12.30 | 1 |
| 7 | A00002-23-00 | DOWEL PIN M10X14 | $2.00 | 4 |
| 8 | A00019-19-04 | STUD M6X38 | $2.00 | 2 |
| 9 | A01769-09-00 | OIL PIPE BOLT M8X25 | $2.00 | 2 |
| 11 | A02724-09-00 | OIL PIPE | $15.80 | 1 |
| 12 | A01177-09-00 | ALUMINUM WASHER M6 | $2.00 | 2 |
| 13 | A00437-19-08 | CASE FLANGE BOLT M6X105 | $2.50 | 2 |
