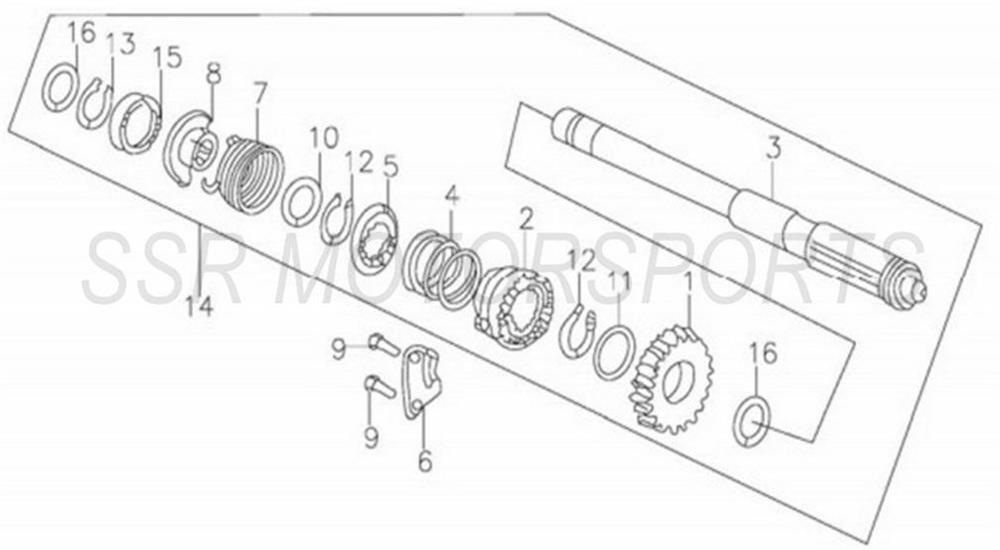

Kickstart Assembly (TX160)
CLICK PARTS ON TABLE TO ADD
| NO. | PART NUMBER | DESCRIPTION | RETAIL | QTY |
|---|---|---|---|---|
| 1 | A01857-09-00 | KICKSTARTER GEAR | $29.80 | 1 |
| 2 | A01858-09-00 | KICKSTARTER RATCHET WHEEL | $19.30 | 1 |
| 3 | A01859-09-00 | KICKSTARTER SHAFT | $49.00 | 1 |
| 4 | A01860-09-00 | SPRING | $2.50 | 1 |
| 5 | A01861-09-00 | RATCHET WASHER | $2.60 | 1 |
| 6 | A01862-09-00 | RATCHET WHEEL GUIDE RUNNER | $6.10 | 1 |
| 7 | A01863-09-00 | STARTING SHAFT SPRING | $2.60 | 1 |
| 8 | A01864-09-00 | STARTING SHAFT SPRING PLATE | $8.80 | 1 |
| 9 | A00047-19-03 | HEX BOLT M6X20 | $2.00 | 2 |
| 10 | A01123-09-00 | WASHER I 20.2X27X1 | $2.00 | 1 |
| 11 | A01129-09-00 | WASHER II 17.2X24X1 | $2.00 | 2 |
| 12 | A01130-09-00 | CIRCLIP 18.5 | $2.00 | 2 |
| 13 | A01131-09-00 | CIRCLIP 15.5 | $2.00 | 1 |
| 14 | A01865-09-00 | KICKSTARTER SHAFT ASSY | $117.30 | 1 |
| 15 | A01866-09-00 | SPRING COVER | $4.40 | 1 |
| 16 | A00120-21-01 | WASHER | $2.00 | 2 |
