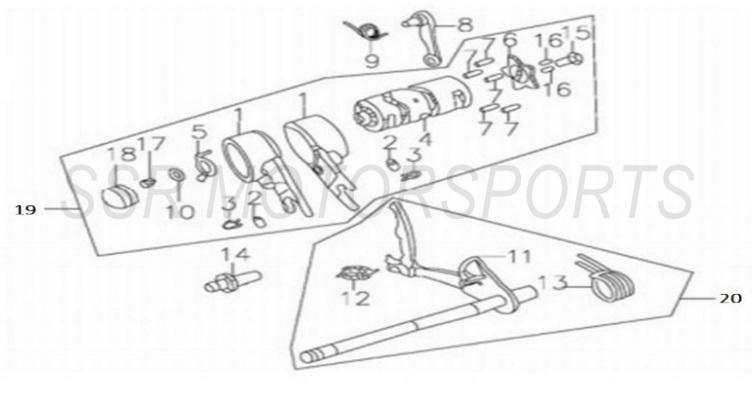

Shifting Mechanism (TX160)
CLICK PARTS ON TABLE TO ADD
| NO. | PART NUMBER | DESCRIPTION | RETAIL | QTY |
|---|---|---|---|---|
| 1 | A01840-09-00 | SHIFT FORK | $12.30 | 2 |
| 2 | A01841-09-00 | GUIDE PIN | $2.00 | 2 |
| 3 | A01842-09-00 | SPRING CLIP | $2.00 | 2 |
| 4 | A01843-09-00 | SHIFT DRUM | $49.00 | 1 |
| 5 | A01844-09-00 | LOCK WASHER | $8.00 | 1 |
| 6 | A01845-09-00 | SHIFTER STAR | $8.00 | 1 |
| 7 | A01846-09-00 | SHIFTER PIN | $2.00 | 5 |
| 8 | A01847-09-00 | SHIFTER ACTUATOR | $8.80 | 1 |
| 9 | A01848-09-00 | SPRING | $2.00 | 1 |
| 10 | A00267-21-03 | GROUNDING WASHER | $6.10 | 1 |
| 11 | A01849-09-00 | SHIFT SHAFT | $72.50 | 1 |
| 12 | A01850-09-00 | SPRING | $2.00 | 1 |
| 13 | A01851-09-00 | RETURN SPRING | $2.50 | 1 |
| 14 | A01852-09-00 | RETAINER PIN | $2.60 | 1 |
| 15 | A00031-19-01 | FLANGE BOLT M6X12 | $2.00 | 1 |
| 16 | A01734-09-00 | ROLL PIN | $2.00 | 2 |
| 17 | A01853-09-00 | SWITCH PLUG | $2.00 | 1 |
| 18 | A01736-09-00 | RUBBER PLUG | $2.60 | 1 |
| 19 | A01855-09-00 | SHIFT DRUM ASSY | $101.50 | 1 |
| 20 | A01856-09-00 | SHIFTING SUB-ASSEMBLY | $75.30 | 1 |
