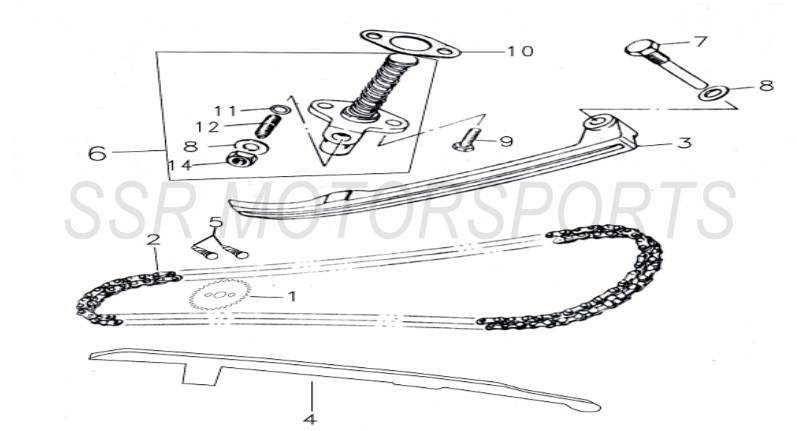

Timing Chain (TX160)
CLICK PARTS ON TABLE TO ADD
| NO. | PART NUMBER | DESCRIPTION | RETAIL | QTY |
|---|---|---|---|---|
| 1 | A01787-09-00 | CAM SPROCKET | $24.50 | 1 |
| 2 | A01788-09-00 | TIMING CHAIN | $75.30 | 1 |
| 3 | A01789-09-00 | UPPER TENSIONER GUIDE | $15.80 | 1 |
| 4 | A01790-09-00 | LOWER TENSIONER GUIDE | $15.80 | 1 |
| 5 | A00011-19-03 | BOLT M6X14 | $2.00 | 2 |
| 6 | A01791-09-00 | CAM CHAIN TENSIONER ASSY | $15.80 | 1 |
| 7 | A01792-09-00 | UPPER CHAIN SLIDER PIVOT BOLT | $2.50 | 1 |
| 9 | A00016-19-03 | BOLT M6X20 | $2.00 | 2 |
| 10 | A00175-13-00 | CAM CHAIN TENSIONER GASKET | $2.60 | 1 |
| 11 | A00097-27-00 | O-RING | $2.00 | 1 |
| 12 | A01793-09-00 | ADJUSTER BOLT | $2.00 | 1 |
| 13 | A00004-21-01 | WASHER M8 | $2.00 | 1 |
| 14 | A00002-22-01 | NUT M8 | $2.00 | 1 |
