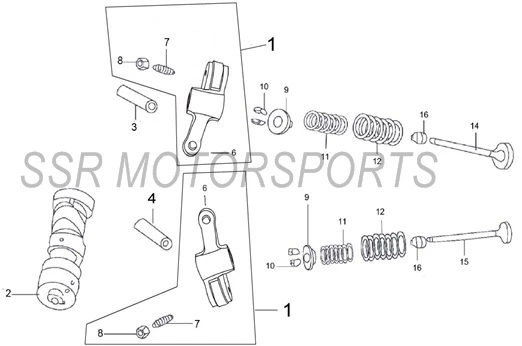

Camshaft Assembly (TX170)
CLICK PARTS ON TABLE TO ADD
| NO. | PART NUMBER | DESCRIPTION | RETAIL | QTY |
|---|---|---|---|---|
| 1 | A02732-09-00 | ROCKER ARM ASSY | $36.80 | 2 |
| 2 | A02558-09-00 | CAMSHAFT | $101.50 | 1 |
| 3 | A02733-09-00 | ROCKERARM SHAFT | $6.10 | 1 |
| 4 | A02734-09-00 | ROCKERARM SHAFT | $6.10 | 1 |
| 6 | A02735-09-00 | ROLLER ROCKER ARM | $31.50 | 2 |
| 7 | A01778-09-00 | VALVE ADJUSTING SCREW | $2.50 | 2 |
| 8 | A01779-09-00 | LOCKNUT | $2.50 | 2 |
| 9 | A02736-09-00 | UPPER VALVE SPRING RETAINER | $8.00 | 2 |
| 10 | A02737-09-00 | COLLET | $2.50 | 4 |
| 11 | A02738-09-00 | INNER VALVE SPRING | $6.10 | 2 |
| 12 | A02739-09-00 | OUTER VALVE SPRING | $6.10 | 2 |
| 14 | A02740-09-00 | INTAKE VALVE | $19.30 | 1 |
| 15 | A02741-09-00 | EXHAUST VALVE | $19.30 | 1 |
| 16 | A02742-09-00 | VALVE GUIDE SEAL | $4.40 | 2 |
