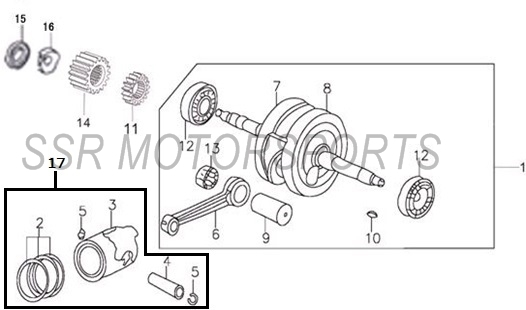

Crankshaft (TX170)
CLICK PARTS ON TABLE TO ADD
| NO. | PART NUMBER | DESCRIPTION | RETAIL | QTY |
|---|---|---|---|---|
| 1 | A02552-09-00 | CRANKSHAFT ASSY | $210.00 | 1 |
| 2 | A01476-09-00 | PISTON RING SET | $68.30 | 1 |
| 3 | A01477-09-00 | PISTON | $68.30 | 1 |
| 4 | A02755-09-00 | PISTON PIN | $6.10 | 1 |
| 5 | A02756-09-00 | PISTON PIN CIRCLIP | $2.00 | 2 |
| 6 | A02757-09-00 | CONNECTING ROD | $12.30 | 1 |
| 7 | A02553-09-00 | RIGHT CRANKSHAFT HALF | $103.30 | 1 |
| 8 | A02554-09-00 | LEFT CRANKSHAFT HALF | $103.30 | 1 |
| 9 | A02555-09-00 | CRANK PIN | $6.10 | 1 |
| 10 | A01809-09-00 | WOODRUFF KEY | $2.00 | 1 |
| 11 | A02758-09-00 | OIL PUMP DRIVEN GEAR 17T | $10.50 | 1 |
| 12 | A00062-28-00 | BEARING 63/22 | $12.30 | 2 |
| 13 | A02556-09-00 | BEARING | $8.80 | 1 |
| 14 | A02759-09-00 | PRIMARY DRIVEN GEAR 18T | $24.50 | 1 |
| 15 | A00323-24-01 | NUT | $2.60 | 1 |
| 16 | A00240-21-01 | TAB WASHER | $2.00 | 1 |
| 17 | A02557-09-00 | PISTON KIT | $140.00 | 1 |
