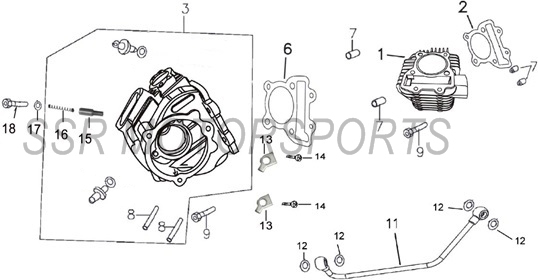

Cylinder Head & Cylinder Assembly (TX170)
CLICK PARTS ON TABLE TO ADD
| NO. | PART NUMBER | DESCRIPTION | RETAIL | QTY |
|---|---|---|---|---|
| 1 | A01475-09-00 | CYLINDER | $143.50 | 1 |
| 2 | A00185-13-00 | CYLINDER BASE GASKET | $12.30 | 1 |
| 3 | A02551-09-00 | CYLINDER HEAD ASSY W/ VALVES | $336.00 | 1 |
| 6 | A00186-13-00 | CYLINDER HEAD GASKET | $12.30 | 1 |
| 7 | A00002-23-00 | DOWEL PIN M10X14 | $2.00 | 4 |
| 8 | A00384-19-04 | STUD | $2.00 | 2 |
| 9 | A01769-09-00 | OIL PIPE BOLT M8X25 | $2.00 | 2 |
| 10 | A00042-27-00 | O-RING 9X1.6 | $2.00 | 2 |
| 11 | A02724-09-00 | OIL PIPE | $15.80 | 1 |
| 12 | A00238-21-01 | SPECIAL WASHER | $2.00 | 4 |
| 13 | A02725-09-00 | RETAINER PLATE | $2.60 | 2 |
| 14 | A00385-19-03 | BOLT | $2.00 | 2 |
| 15 | A02726-09-00 | COMPRESSION RELEASE PIN | $2.60 | 1 |
| 16 | A02727-09-00 | COMPRESSION RELEASE SPRING | $2.60 | 1 |
| 17 | A00239-21-01 | WASHER | $2.00 | 1 |
| 18 | A00386-19-03 | BOLT | $2.00 | 1 |
