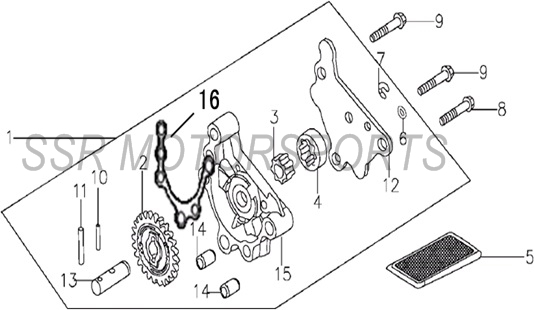

Oil Pump Assembly (TX170)
CLICK PARTS ON TABLE TO ADD
| NO. | PART NUMBER | DESCRIPTION | RETAIL | QTY |
|---|---|---|---|---|
| 1 | A01867-09-00 | OIL PUMP ASSY | $49.00 | 1 |
| 2 | A01868-09-00 | OIL PUMP DRIVEN GEAR | $10.50 | 1 |
| 3 | A01869-09-00 | OIL PUMP INNER ROTOR | $8.80 | 1 |
| 4 | A01870-09-00 | OIL PUMP OUTER ROTOR | $8.80 | 1 |
| 5 | A01098-09-00 | OIL SCREEN | $10.50 | 1 |
| 6 | A00141-19-05 | WASHER BOLT | $2.00 | 1 |
| 7 | A00038-24-07 | CIRCLIP | $2.00 | 1 |
| 8 | A00142-19-01 | FLANGE BOLT | $2.00 | 1 |
| 9 | A00143-19-01 | FLANGE BOLT | $2.60 | 2 |
| 10 | A01754-09-00 | PIN | $2.00 | 1 |
| 11 | A01755-09-00 | PIN | $2.00 | 1 |
| 12 | A01872-09-00 | OIL PUMP COVER | $8.80 | 1 |
| 13 | A01873-09-00 | OIL PUMP ROD | $8.80 | 1 |
| 14 | A00101-23-00 | DOWEL PIN | $2.00 | 2 |
| 15 | A01874-09-00 | OIL PUMP BODY | $21.00 | 1 |
| 16 | A00278-13-00 | OIL PUMP GASKET | $6.10 | 1 |
