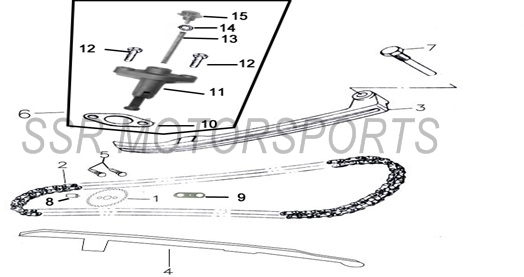

Timing Chain (TX170)
CLICK PARTS ON TABLE TO ADD
| NO. | PART NUMBER | DESCRIPTION | RETAIL | QTY |
|---|---|---|---|---|
| 1 | A02743-09-00 | CAM SPROCKET | $24.50 | 1 |
| 2 | A02744-09-00 | TIMING CHAIN | $75.30 | 1 |
| 3 | A01789-09-00 | UPPER TENSIONER GUIDE | $15.80 | 1 |
| 4 | A01790-09-00 | LOWER TENSIONER GUIDE | $15.80 | 1 |
| 5 | A00011-19-03 | BOLT M6X14 | $2.00 | 2 |
| 6 | A01791-09-00 | CAM CHAIN TENSIONER ASSY | $15.80 | 1 |
| 7 | A02954-09-00 | UPPER CHAIN SLIDER PIVOT BOLT | $2.50 | 1 |
| 8 | A00003-23-00 | DOWEL PIN M8X12 | $2.00 | 1 |
| 9 | A02749-09-00 | CAMSHAFT RETAINER | $2.00 | 1 |
| 10 | A00276-13-00 | CAM CHAIN TENSIONER GASKET | $2.60 | 1 |
| 11 | A02750-09-00 | TENSIONER BODY | $12.30 | 1 |
| 12 | A00126-19-01 | BOLT M6X20 | $2.00 | 2 |
| 13 | A02751-09-00 | SPRING | $2.00 | 1 |
| 14 | A00149-27-00 | O-RING | $2.00 | 1 |
| 15 | A00095-20-01 | SCREW | $2.00 | 1 |
