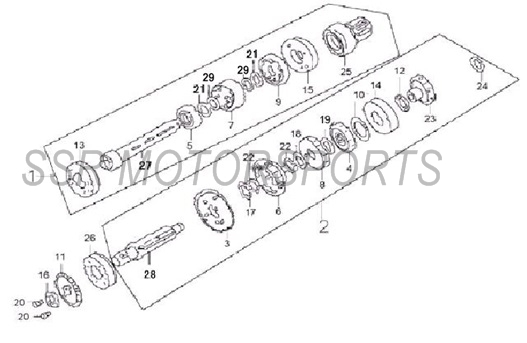

Transmission (TX170)
CLICK PARTS ON TABLE TO ADD
| NO. | PART NUMBER | DESCRIPTION | RETAIL | QTY |
|---|---|---|---|---|
| 1 | A00407-17-00 | MAIN SHAFT ASSY | $143.50 | 1 |
| 2 | A00408-17-00 | COUNTERSHAFT ASSY | $143.50 | 1 |
| 3 | A00409-17-00 | GEAR | $21.00 | 1 |
| 4 | A00410-17-00 | GEAR | $10.50 | 1 |
| 5 | A00411-17-00 | GEAR 16T | $21.00 | 1 |
| 6 | A00412-17-00 | GEAR | $21.00 | 1 |
| 7 | A00413-17-00 | GEAR 17T | $21.00 | 1 |
| 8 | A00414-17-00 | GEAR | $21.00 | 1 |
| 9 | A00415-17-00 | GEAR 20T | $21.00 | 1 |
| 10 | A00241-21-01 | WASHER | $6.10 | 1 |
| 11 | A00309-07-00 | COUNTERSHAFT SPROCKET 15T | $24.50 | 1 |
| 11 | A00400-07-00 | COUNTERSHAFT SPROCKET 16T OPT | $24.50 | 1 |
| 12 | A00242-21-01 | WASHER | $2.50 | 1 |
| 13 | A00003-28-00 | BEARING 6001 | $8.80 | 1 |
| 14 | A00094-28-00 | BEARING 152712 | $8.80 | 1 |
| 15 | A00008-28-00 | BEARING 6203 | $31.50 | 1 |
| 16 | A00214-17-00 | SPROCKET RETAINER PLATE | $4.40 | 1 |
| 17 | A00244-21-01 | SPLINED SHAFT WASHER | $2.50 | 1 |
| 18 | A00245-21-01 | SPLINED SHAFT WASHER | $2.50 | 1 |
| 19 | A00246-21-01 | WASHER | $2.50 | 1 |
| 20 | A00140-19-01 | BOLT | $2.00 | 2 |
| 21 | A00335-17-00 | SPLINED SHAFT WASHER | $2.50 | 2 |
| 22 | A00336-17-00 | SHIELD RING | $2.50 | 2 |
| 23 | A00337-17-00 | STARTER IDLER GEAR 22T | $24.50 | 1 |
| 24 | A00364-17-00 | CIRCLIP 14MM | $2.00 | 1 |
| 25 | A00338-17-00 | CLUTCH GEAR SLEEVE | $24.50 | 1 |
| 26 | A00095-28-00 | BEARING 6303X3 | $10.50 | 1 |
| 27 | A00416-17-00 | MAINSHAFT | $101.50 | 1 |
| 28 | A00417-17-00 | COUNTERSHAFT | $101.50 | 1 |
| 29 | A00247-21-01 | CIRCLIP | $2.00 | 2 |
