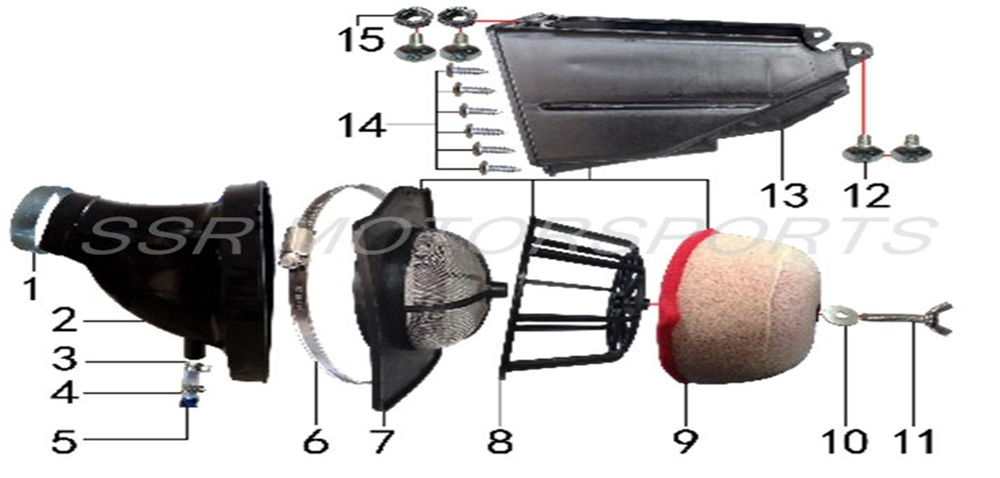

Air Box
CLICK PARTS TO ADD
| NO. | PART # | DESCRIPTION | RETAIL | QTY |
|---|---|---|---|---|
| 1 | A00004-24-02 | HOSE CLAMP 38-57 | $6.10 | 1 |
| 2 | A00303-14-00 | AIRBOX BOOT | $56.00 | 1 |
| 3 | A00304-14-00 | WIRE HOSE CLAMP 13.5 | $2.00 | 2 |
| 4 | A00305-14-00 | AIRBOX DRAIN HOSE | $2.00 | 1 |
| 5 | A00306-14-00 | DRAIN HOSE PLUG | $2.00 | 1 |
| 6 | A00307-14-00 | HOSE CLAMP 140-160 | $8.80 | 1 |
| 7 | A00308-14-00 | AIRBOX BACKFIRE SCREEN | $28.00 | 1 |
| 8 | A00309-14-00 | AIR FILTER CAGE | $15.80 | 1 |
| 9 | A00310-14-00 | AIR FILTER ELEMENT | $45.50 | 1 |
| 10 | A00004-21-01 | WASHER M8 | $2.00 | 1 |
| 11 | A00454-19-W3 | WING BOLT M6X40 | $2.50 | 1 |
| 12 | A00123-19-02 | BUTTON HEAD ALLEN BOLT M6X16 | $2.00 | 4 |
| 13 | A00311-14-00 | AIRBOX HOUSING | $31.50 | 1 |
| 14 | A00009-20-03 | ST SCREW ST4.8X16 | $2.00 | 6 |
| 15 | A00093-22-03 | FLANGE NUT M6 | $2.00 | 2 |
