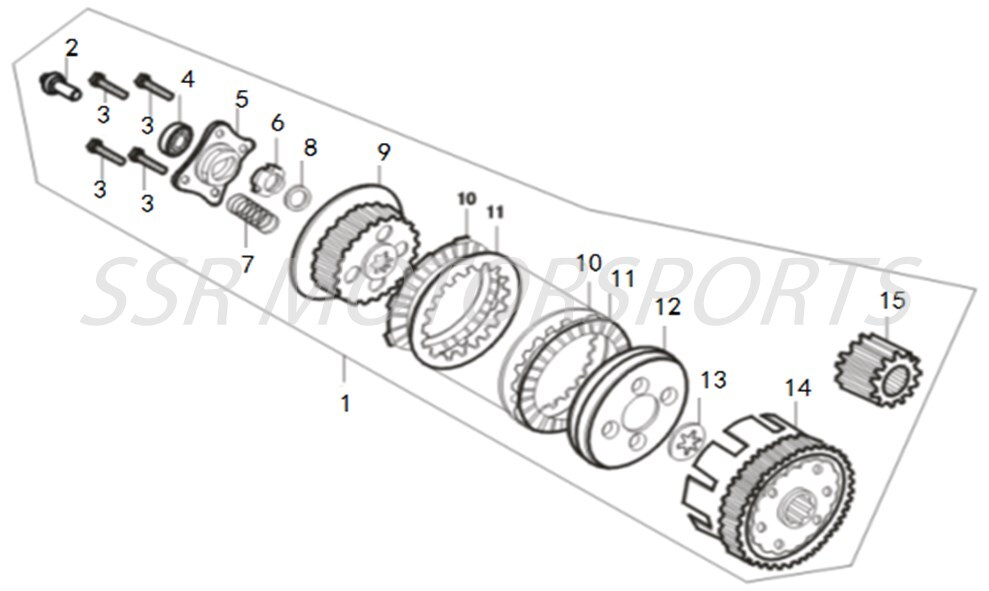

Clutch
CLICK PARTS TO ADD
| NO. | PART # | DESCRIPTION | RETAIL | QTY |
|---|---|---|---|---|
| 1 | A03100-09-00 | COMPLETE CLUTCH ASSY | $14.00 | 1 |
| 2 | A03101-09-00 | CLUTCH PUSH ROD | $2.50 | 1 |
| 3 | A00061-19-01 | FLANGE BOLT M5×20 | $2.00 | 6 |
| 4 | A00069-28-00 | BEARING 16003/P6 | $5.30 | 1 |
| 5 | A03102-09-00 | CLUTCH RELEASE PLATE | $21.00 | 1 |
| 6 | A02236-09-00 | SPLINED NUT M16 | $4.40 | 1 |
| 7 | A03103-09-00 | CLUTCH SPRING | $2.50 | 6 |
| 8 | A00072-21-01 | DISHED WASHER 16X27X2 | $2.60 | 1 |
| 9 | A03104-09-00 | PRESSURE PLATE | $45.50 | 1 |
| 10 | A03105-09-00 | FRICTION PLATE | $8.00 | 7 |
| 11 | A03106-09-00 | STEEL PLATE | $4.40 | 6 |
| 12 | A03107-09-00 | INNER CLUTCH HUB | $68.30 | 1 |
| 13 | A03110-09-00 | SPLINE WASHER 20X37X2.6 | $2.50 | 1 |
| 14 | A03108-09-00 | OUTER CLUTCH BASKET | $129.50 | 1 |
| 15 | A03109-09-00 | PRIMARY DRIVING GEAR 21T | $10.50 | 1 |
