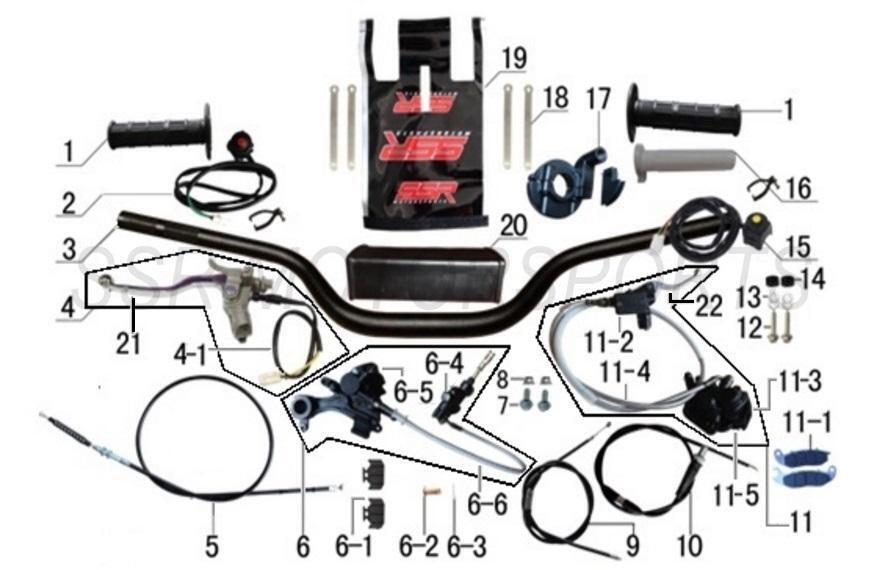

Controls & Brakes
CLICK PARTS TO ADD
| NO. | PART # | DESCRIPTION | RETAIL | QTY |
|---|---|---|---|---|
| 1 | A00280-05-00 | HANDLEBAR GRIP SET | $14.00 | 1 |
| 2 | A00408-08-00 | KILL SWITCH | $12.30 | 1 |
| 3 | A00602-05-00 | HANDLEBAR 800-810 28.5X22.2 | $38.50 | 1 |
| 4 | A00653-05-00 | CLUTCH PERCH ASSY | $49.00 | 1 |
| 4-1 | A00539-05-00 | CLUTCH LOCKOUT SWITCH CLIP TYPE | $12.30 | 1 |
| 5 | A00657-05-00 | CLUTCH CABLE 930 165 | $19.30 | 1 |
| 6 | A00455-04-00 | REAR BRAKE ASSY | $129.50 | 1 |
| 6-1 | A00458-04-00 | REAR BRAKE PAD SET | $15.80 | 1 |
| 6-2 | A00417-04-00 | REAR BRAKE PIN | $2.00 | 1 |
| 6-3 | A00007-25-01 | COTTER PIN 1.5X16 | $2.00 | 1 |
| 6-4 | A00594-04-00 | REAR BRAKE MASTER CYLINDER ASSY | $45.50 | 1 |
| 6-5 | A00691-04-00 | REAR BRAKE CALIPER ASSY | $68.30 | 1 |
| 6-6 | A00596-04-00 | REAR BRAKE HOSE | $19.30 | 1 |
| 7 | A00003-19-01 | FLANGE BOLT M6X25 | $2.00 | 2 |
| 8 | A00093-22-03 | FLANGE NUT M6 | $2.00 | 2 |
| 9 | A00445-05-00 | CHOKE CABLE 895 77 | $19.30 | 1 |
| 10 | A00297-05-00 | THROTTLE CABLE 95/12.2 | $21.00 | 1 |
| 11 | A00700-04-00 | FRONT BRAKE ASSY | $136.50 | 1 |
| 11-1 | A00701-04-00 | FRONT BRAKE PAD SET | $15.80 | 1 |
| 11-2 | A00702-04-00 | FRONT BRAKE MASTER CYLINDER ASSY | $45.50 | 1 |
| 11-3 | A00703-04-00 | FRONT BRAKE CALIPER | $68.30 | 1 |
| 11-4 | A00704-04-00 | FRONT BRAKE LINE | $19.30 | 1 |
| 11-5 | A00705-04-00 | FRONT CALIPER BRACKET | $4.40 | 1 |
| 12 | A00016-19-01 | FLANGE BOLT M8X45 | $2.50 | 2 |
| 13 | A00013-21-01 | WASHER 8X16X1.5 | $2.00 | 4 |
| 14 | A00760-04-00 | SPACER 8X14X12.5 | $2.00 | 2 |
| 15 | A00409-08-00 | START SWITCH | $19.30 | 1 |
| 16 | A00284-05-00 | THROTTLE TUBE | $8.80 | 1 |
| 17 | A00285-05-00 | THROTTLE HOUSING | $19.30 | 1 |
| 18 | A00009-24-01 | RUBBER CABLE CLAMP 75MM | $2.60 | 4 |
| 19 | A01026-02-02 | HANDLEBAR PAD COVER W/ FUEL HOSE NOTCH | $15.80 | 1 |
| 20 | A00565-05-01 | HANDLEBAR PAD W/ FUEL HOSE NOTCH | $26.30 | 1 |
| 21 | A00655-05-00 | CLUTCH LEVER | $15.80 | 1 |
| 22 | A00534-05-00 | FRONT BRAKE LEVER | $21.00 | 1 |
| 23 | A00399-19-00 | CLUTCH LEVER PIVOT BOLT | $2.60 | 1 |
| 24 | A00002-21-02 | LOCK WASHER M6 | $2.00 | 1 |
| 25 | A00001-22-01 | NUT M6 | $2.00 | 1 |
| 26 | A00421-19-X8 | CASE FLANGE BOLT M6X25 BLK | $2.00 | 2 |
| 27 | A00585-05-00 | CHOKE LEVER | $2.60 | 1 |
| 28 | A00586-05-00 | CLUTCH CABLE ADJUSTER W/ NUT | $2.60 | 1 |
| 29 | A00587-05-00 | SPACER | $2.60 | 1 |
