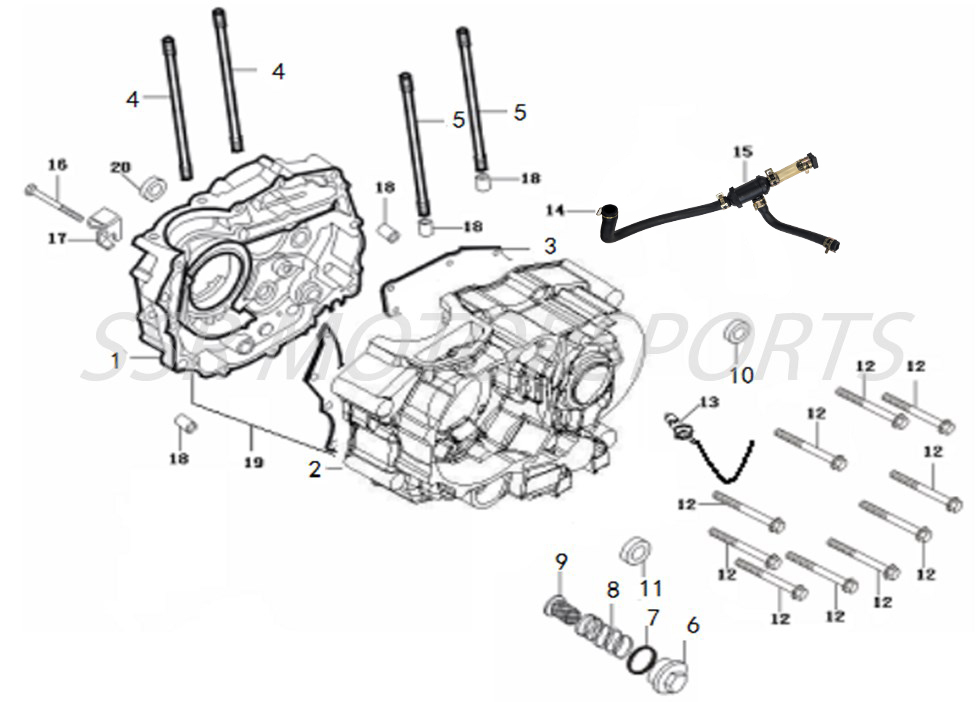

Crankcase
CLICK PARTS TO ADD
| NO. | PART # | DESCRIPTION | RETAIL | QTY |
|---|---|---|---|---|
| 1 | A03119-09-00 | RIGHT CRANKCASE HALF | $154.00 | 1 |
| 2 | A03120-09-00 | LEFT CRANKCASE HALF | $162.80 | 1 |
| 3 | A00315-13-00 | CENTER CASE GASKET | $26.30 | 1 |
| 4 | A00025-19-04 | STUD B M8X228 | $4.40 | 2 |
| 5 | A00026-19-04 | STUD A M8X241 | $4.40 | 2 |
| 6 | A03121-09-00 | OIL FILTER SCREEN CAP | $8.00 | 1 |
| 7 | A00052-27-00 | O-RING 35X3 | $2.60 | 1 |
| 8 | A02298-09-00 | OIL FILTER SCREEN SPRING | $3.50 | 1 |
| 9 | A00660-09-00 | OIL FILTER SCREEN | $8.80 | 1 |
| 10 | A00038-26-00 | OIL SEAL 20X34X7 | $4.40 | 1 |
| 11 | A00037-26-00 | OIL SEAL 14X28X7 | $4.40 | 1 |
| 12 | A00428-19-08 | CASE FLANGE BOLT M6X50 | $2.00 | 10 |
| 13 | A03122-09-00 | NEUTRAL SWITCH | $36.80 | 1 |
| 14 | A00304-14-00 | WIRE HOSE CLAMP 13.5 | $2.00 | 1 |
| 15 | A03243-09-00 | CRANKCASE VENT HOSE ASSY | $24.50 | 1 |
| 16 | A00440-19-08 | CASE FLANGE BOLT M6X55 | $2.00 | 1 |
| 17 | A03125-09-00 | CLUTCH CABLE CLAMP | $2.60 | 1 |
| 18 | A00002-23-00 | DOWEL PIN M10X14 | $2.00 | 4 |
| 19 | A03123-09-00 | CRANKCASE ASSY | $295.80 | 1 |
| 20 | A00070-28-00 | BEARING HK212810 | $8.00 | 1 |
