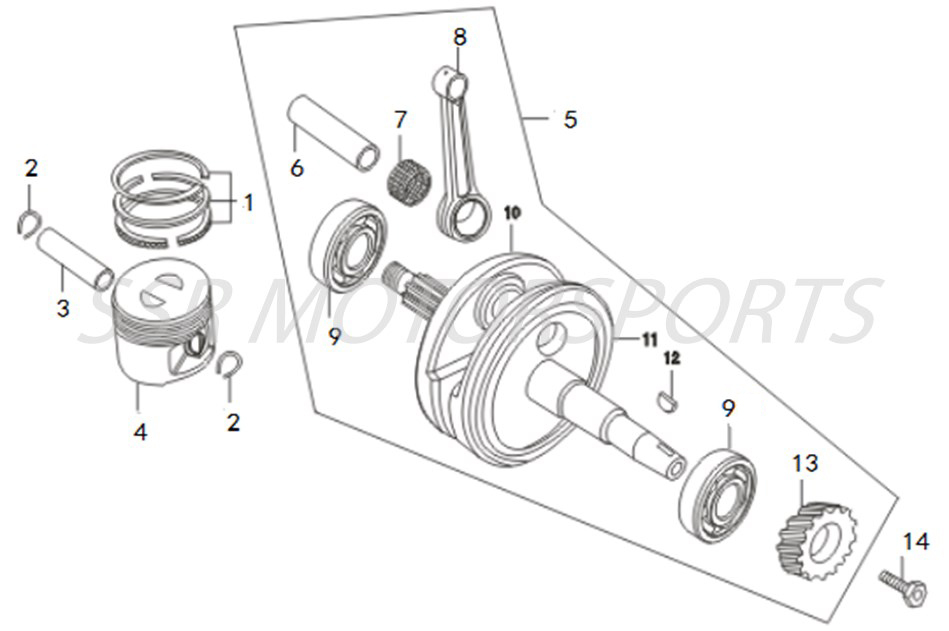

Crankshaft
CLICK PARTS TO ADD
| NO. | PART # | DESCRIPTION | RETAIL | QTY |
|---|---|---|---|---|
| 1 | A03126-09-00 | PISTON RING SET | $56.00 | 1 |
| 2 | A03127-09-00 | PISTON PIN CIRCLIP | $2.00 | 2 |
| 3 | A03128-09-00 | PISTON PIN | $15.80 | 1 |
| 4 | A03129-09-00 | PISTON | $73.50 | 1 |
| 5 | A03130-09-00 | CRANKSHAFT ASSY | $260.80 | 1 |
| 6 | A03131-09-00 | CRANK PIN | $22.80 | 1 |
| 7 | A00073-28-00 | NEEDLE BEARING 30X38X17.8 | $21.00 | 1 |
| 8 | A03132-09-00 | CONNECTING ROD | $28.00 | 1 |
| 9 | A00071-28-00 | BEARING TM-SC06B42 | $10.50 | 2 |
| 10 | A03133-09-00 | RIGHT CRANKSHAFT HALF | $85.80 | 1 |
| 11 | A03134-09-00 | LEFT CRANKSHAFT HALF | $85.80 | 1 |
| 12 | A03135-09-00 | WOODRUFF KEY 25X14X4H4.5 | $2.00 | 1 |
| 13 | A03136-09-00 | CRANKSHAFT TIMING GEAR | $17.50 | 1 |
| 14 | A00088-19-01 | FLANGE BOLT M10X35X1.25 | $2.50 | 1 |
