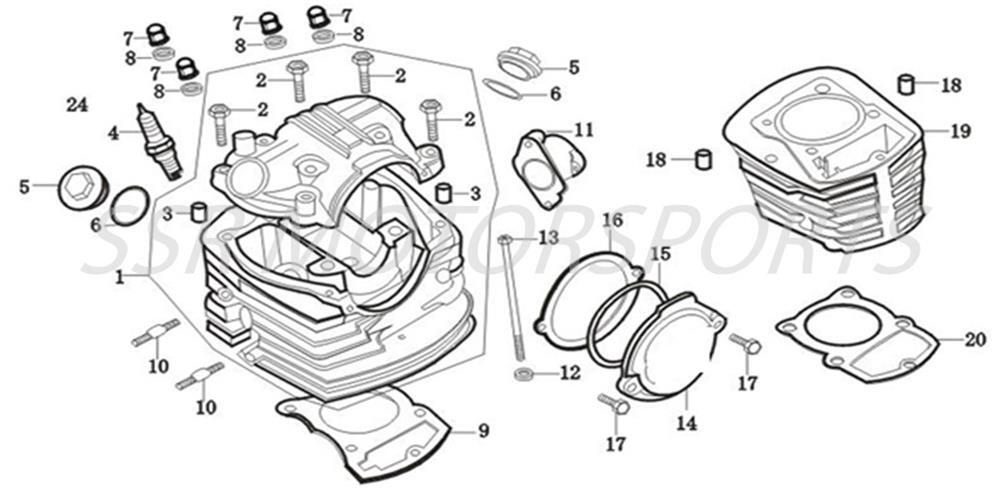

Cylinder Head & Cylinder
CLICK PARTS TO ADD
| NO. | PART # | DESCRIPTION | RETAIL | QTY |
|---|---|---|---|---|
| 1 | A03062-09-00 | CYLINDER HEAD ASSY | $505.80 | 1 |
| 2 | A00425-19-08 | CASE FLANGE BOLT M6X35 | $2.00 | 4 |
| 3 | A00013-23-00 | DOWEL PIN 8X10 | $2.00 | 2 |
| 4 | D8EA | SPARK PLUG D8EA | $10.50 | 1 |
| 5 | A03063-09-00 | VALVE INSPECTION CAP | $8.00 | 2 |
| 6 | A00052-27-00 | O-RING 35X3 | $2.60 | 2 |
| 7 | A00005-22-06 | CAP NUT M8X18 | $2.60 | 4 |
| 9 | A00309-13-00 | CYLINDER HEAD GASKET | $14.00 | 1 |
| 10 | A00010-19-04 | STUD M8X35-BLACK | $2.00 | 2 |
| 11 | A00372-14-00 | INTAKE MANIFOLD ASSY | $19.30 | 1 |
| 12 | A00292-21-01 | WASHER 6X11X1.5 | $2.00 | 1 |
| 13 | A00001-19-08 | CASE FLANGE BOLT M6X125 | $2.50 | 1 |
| 14 | A03064-09-00 | LEFT CYLINDER HEAD COVER | $10.50 | 1 |
| 16 | A00310-13-00 | LEFT CYLINDER HEAD COVER GASKET | $2.00 | 1 |
| 17 | A00419-19-08 | CASE FLANGE BOLT M6X20 | $2.00 | 2 |
| 18 | A00018-23-00 | DOWEL PIN 10X20 | $2.00 | 2 |
| 19 | A03065-09-00 | CYLINDER | $280.00 | 1 |
| 20 | A00311-13-00 | CYLINDER BASE GASKET | $8.80 | 1 |
