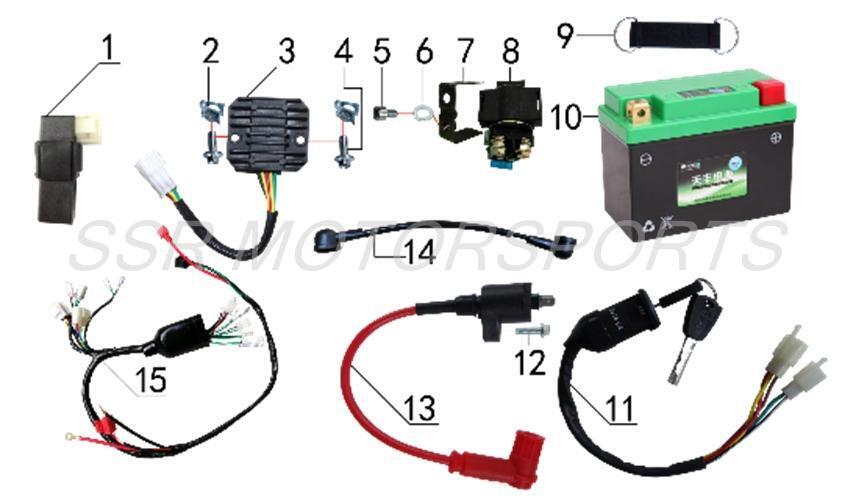

Electrical
CLICK PARTS TO ADD
| NO. | PART # | DESCRIPTION | RETAIL | QTY |
|---|---|---|---|---|
| 1 | A00696-08-00 | CDI | $21.00 | 1 |
| 2 | A00001-22-05 | CLIP NUT M6 | $2.00 | 2 |
| 3 | A00411-08-00 | REGULATOR / RECTIFIER | $35.00 | 1 |
| 4 | A00418-19-08 | CASE FLANGE BOLT M6X16 | $2.00 | 2 |
| 5 | A00010-19-02 | ALLEN BOLT M6X10 | $2.00 | 2 |
| 6 | A00104-21-01 | WASHER 6X18X1.5 | $2.00 | 1 |
| 7 | A00601-08-00 | STARTER RELAY BRACKET | $8.00 | 1 |
| 8 | A00602-08-00 | STARTER RELAY | $38.50 | 1 |
| 9 | A00603-08-00 | BATTERY STRAP 130MM | $15.80 | 1 |
| 10 | YTX5L-BS | BATTERY 12V5AH | $91.00 | 1 |
| 11 | A00415-08-00 | IGNITION SWITCH | $45.50 | 1 |
| 12 | A00419-19-08 | CASE FLANGE BOLT M6X20 | $2.00 | 1 |
| 13 | A00695-08-00 | IGNITION COIL W/ HARNESS | $35.00 | 1 |
| 14 | A00604-08-00 | NEGATIVE BATTERY LEAD | $28.00 | 1 |
| 15 | A00605-08-00 | WIRE HARNESS | $59.50 | 1 |
| 16 | A00072-08-00 | BLADE FUSE 15A | $2.60 | 1 |
