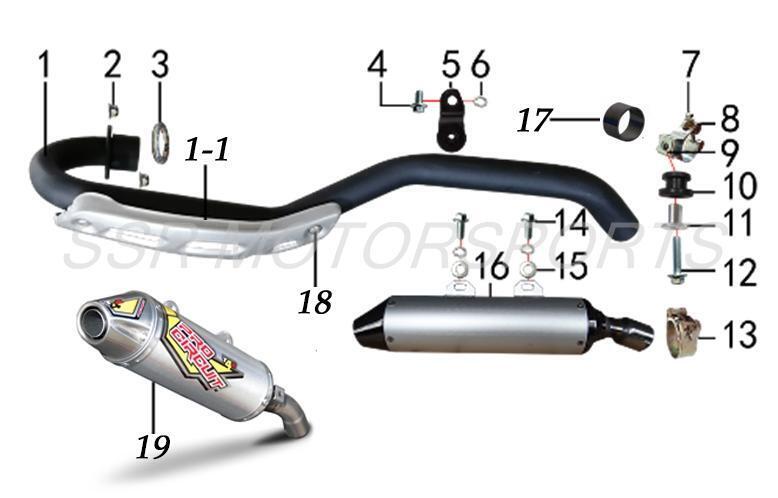

Exhaust System
CLICK PARTS TO ADD
| NO. | PART # | DESCRIPTION | RETAIL | QTY |
|---|---|---|---|---|
| 1 | A00149-10-00 | EXHAUST HEAD PIPE | $85.80 | 1 |
| 1-1 | A00148-10-00 | EXHAUST HEAT SHIELD | $21.00 | 1 |
| 2 | A00003-22-03 | FLANGE LOCKNUT M8 | $2.00 | 2 |
| 3 | A00097-13-00 | EXHAUST GASKET | $4.40 | 1 |
| 4 | A00017-19-01 | FLANGE BOLT M8X16 | $2.00 | 4 |
| 5 | A00121-10-00 | HEADPIPE MOUNTING BRACKET | $8.00 | 1 |
| 6 | A00001-21-02 | LOCK WASHER M8 | $2.00 | 3 |
| 7 | A00001-19-01 | FLANGE BOLT M6X30 | $2.00 | 1 |
| 8 | A00113-10-00 | EXHAUST PIPE MOUNT CLAMP | $8.80 | 1 |
| 9 | A00001-22-05 | CLIP NUT M6 | $2.00 | 1 |
| 10 | A00063-10-00 | GROMMET | $2.50 | 1 |
| 11 | A00062-10-00 | COLLAR | $2.00 | 1 |
| 12 | A00003-19-01 | FLANGE BOLT M6X25 | $2.00 | 1 |
| 13 | A00066-10-00 | CLAMP 40-43 | $8.80 | 1 |
| 14 | A00007-19-01 | FLANGE BOLT M8X25 | $2.00 | 2 |
| 15 | A00004-21-01 | WASHER M8 | $2.00 | 2 |
| 16 | A00150-10-00 | MUFFLER | $106.80 | 1 |
| 17 | A00280-13-00 | PACKING GASKET | $12.30 | 1 |
| 18 | A00041-20-02 | BUTTON HEAD SCREW M6X8 | $2.00 | 2 |
