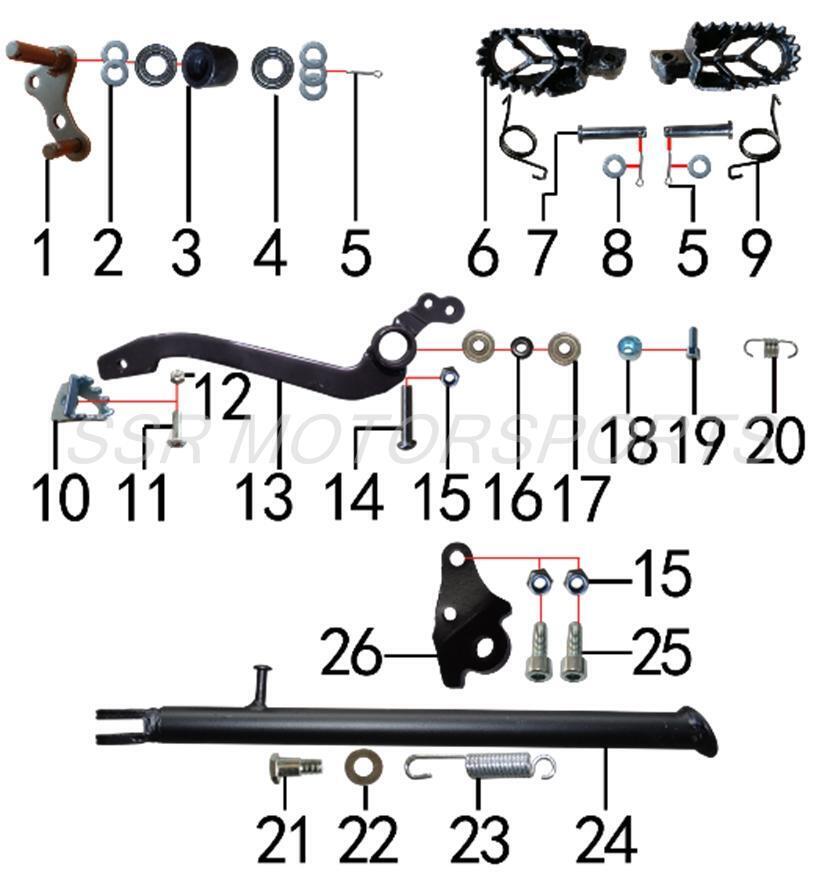

Footpegs & Side Stand
CLICK PARTS TO ADD
| NO. | PART # | DESCRIPTION | RETAIL | QTY |
|---|---|---|---|---|
| 1 | A00320-11-00 | CHAIN ROLLER BRACKET | $4.40 | 1 |
| 2 | A00002-21-01 | WASHER M10 | $2.00 | 5 |
| 3 | A00321-11-00 | UPPER CHAIN ROLLER | $8.00 | 1 |
| 4 | A00096-28-00 | BEARING 6900 | $8.00 | 2 |
| 5 | A00008-25-01 | COTTER PIN 2.5X16 | $2.00 | 3 |
| 6 | A00290-05-00 | FOOTPEG SET | $35.00 | 1 |
| 7 | A00292-05-00 | FOOTPEG PIN 8X42 | $2.00 | 2 |
| 8 | A00013-21-01 | WASHER 8X16X1.5 | $2.00 | 2 |
| 9 | A00291-05-00 | LEFT FOOTPEG SPRING | $2.00 | 1 |
| 9-1 | A00501-05-00 | RIGHT FOOTPEG SPRING | $2.00 | 1 |
| 10 | A00293-05-00 | BRAKE PEDAL TIP | $8.00 | 1 |
| 11 | A00123-19-02 | BUTTON HEAD ALLEN BOLT M6X16 | $2.00 | 1 |
| 12 | A00005-22-04 | FLANGE LOCKNUT M6 | $2.00 | 1 |
| 13 | A00535-05-00 | FOOT BRAKE PEDAL 2018+ MODEL | $28.00 | 1 |
| 14 | A00458-19-09 | BUTTON HEAD ALLEN BOLT M8X40 | $2.50 | 1 |
| 15 | A00100-22-34 | FLANGE LOCKNUT M8 | $2.00 | 3 |
| 16 | A00065-21-01 | WASHER 9X17X2.5 | $2.00 | 1 |
| 17 | A00097-28-00 | BEARING 608 | $8.00 | 2 |
| 18 | A00295-05-00 | PEDAL STOPPER 18X6.5X9 | $2.00 | 1 |
| 19 | A00010-19-02 | ALLEN BOLT M6X10 | $2.00 | 1 |
| 20 | A00296-05-00 | BRAKE PEDAL RETURN SPRING | $2.00 | 1 |
| 21 | A00001-19-07 | SIDE STAND PIVOT BOLT M10X25 | $2.50 | 1 |
| 22 | A00111-21-01 | WASHER 12X24X1.5 | $2.00 | 1 |
| 23 | A00322-11-00 | SIDE STAND SPRING | $2.60 | 1 |
| 24 | A00503-11-00 | KICKSTAND | $33.30 | 1 |
| 25 | A00005-19-02 | ALLEN BOLT M8X30 | $2.00 | 2 |
| 26 | A00324-11-00 | KICKSTAND BRACKET | $12.30 | 1 |
