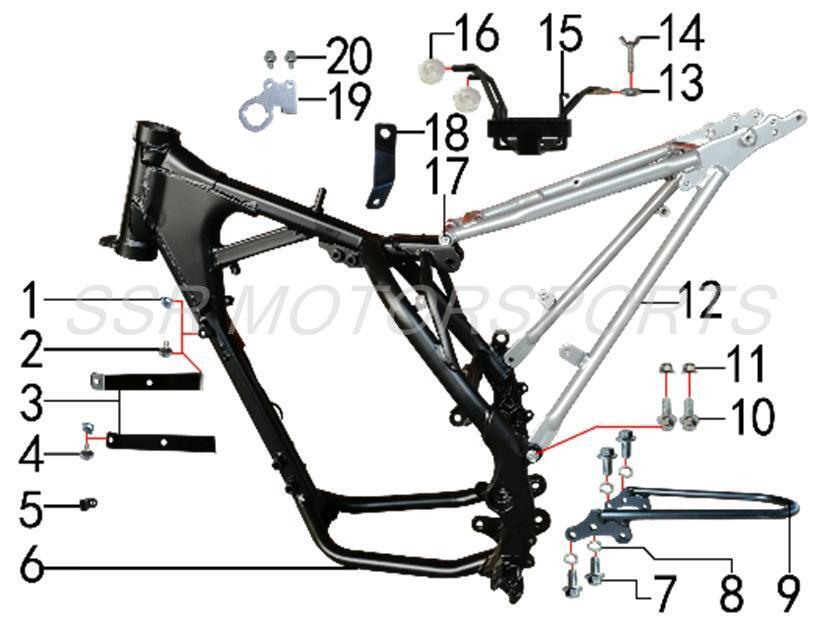

Frame
CLICK PARTS TO ADD
| NO. | PART # | DESCRIPTION | RETAIL | QTY |
|---|---|---|---|---|
| 1 | A00001-22-05 | CLIP NUT M6 | $2.00 | 2 |
| 2 | A00031-19-01 | FLANGE BOLT M6X12 | $2.00 | 1 |
| 3 | A00554-11-00 | BODY BRACKET LEFT W/ HOLE | $8.80 | 1 |
| 3-1 | A00555-11-00 | BODY BRACKET RIGHT | $8.80 | 1 |
| 4 | A00418-19-08 | CASE FLANGE BOLT M6X16 | $2.00 | 1 |
| 5 | A00031-22-05 | CABLE RETAINER | $2.00 | 1 |
| 6 | A00673-11-00 | FRAME BLACK *OVERSIZE/WEIGHT* | $350.00 | 1 |
| 7 | A00017-19-01 | FLANGE BOLT M8X16 | $2.00 | 4 |
| 8 | A00001-21-02 | LOCK WASHER 8X13X2 | $2.00 | 4 |
| 9 | A00550-11-00 | REAR FENDER SUPPORT BLACK | $56.00 | 1 |
| 10 | A00015-19-01 | FLANGE BOLT M8X20 S12 | $2.00 | 2 |
| 11 | A00100-22-34 | FLANGE LOCKNUT M8 | $2.00 | 2 |
| 12 | A00551-11-00 | SUBFRAME SILVER | $140.00 | 1 |
| 13 | A00553-11-00 | COLLAR 22X6.2X4.5X9X2.5 | $2.00 | 1 |
| 14 | A00457-19-W3 | WING BOLT M6X20 | $2.00 | 1 |
| 15 | A00670-11-00 | BATTERY TRAY | $35.00 | 1 |
| 16 | A00449-11-00 | RUBBER GROMMET | $2.50 | 3 |
| 17 | A00026-19-02 | ALLEN BOLT M8X45 | $2.50 | 2 |
| 18 | A00556-11-00 | FUEL PETCOCK BRACKET | $4.40 | 1 |
| 19 | A00557-11-00 | IGNITION SWITCH BRACKET | $8.00 | 1 |
| 20 | A00456-19-09 | PAN HEAD ALLEN BOLT M6X12 | $2.00 | 2 |
