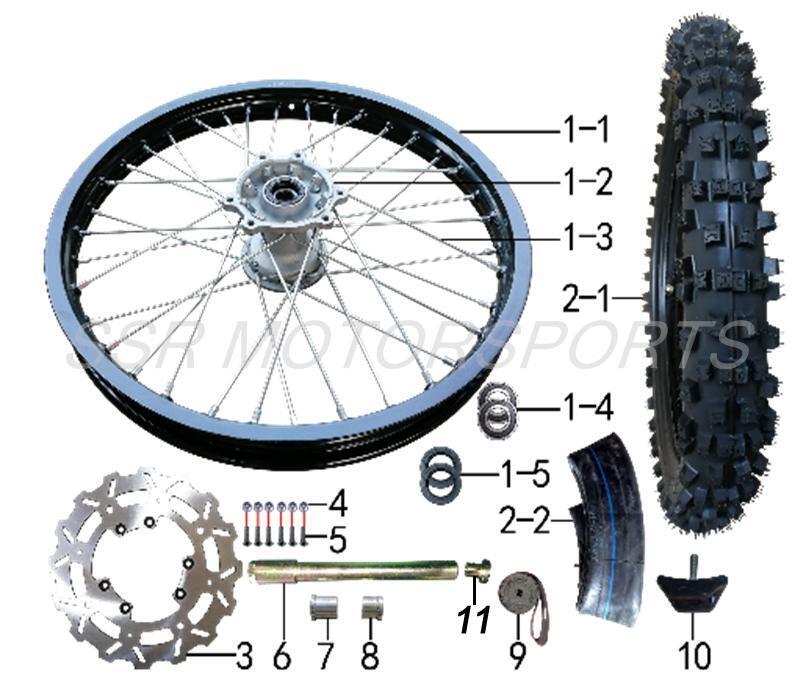

Front Wheel
CLICK PARTS TO ADD
| NO. | PART # | DESCRIPTION | RETAIL | QTY |
|---|---|---|---|---|
| 1 | A00248-18-00 | FRONT WHEEL ASSY 1.60-19 | $148.80 | 1 |
| 1-1 | A00249-18-00 | FRONT RIM 1.60-19 | $73.50 | 1 |
| 1-2 | A00250-18-00 | FRONT HUB | $99.80 | 1 |
| 1-3 | A00251-18-00 | FRONT SPOKE W/ NIPPLE | $2.50 | 36 |
| 1-4 | A00111-28-00 | BEARING 6004 | $14.00 | 2 |
| 1-5 | A00078-26-00 | SEAL 26X42X7 | $3.50 | 2 |
| 2-1 | A00600-18-00 | FRONT TIRE 70/100-19 INNOVA | $96.30 | 1 |
| 2-2 | A00257-18-00 | FRONT INNER TUBE | $19.30 | 1 |
| 3 | A00734-04-00 | FRONT BRAKE ROTOR | $63.00 | 1 |
| 4 | A00005-22-X4 | LOCK NUT M6 - BLACK | $2.00 | 6 |
| 5 | A00489-19-03 | HEX BOLT M6X20 | $2.00 | 6 |
| 6 | A00260-18-00 | FRONT WHEEL AXLE M20X216 | $38.50 | 1 |
| 7 | A00556-18-00 | FRONT AXLE SPACER (L) | $4.40 | 1 |
| 8 | A00555-18-00 | FRONT AXLE SPACER (R) | $4.40 | 1 |
| 9 | A00266-18-00 | RIM STRIP 19" | $8.80 | 1 |
| 10 | A00065-18-00 | RIM LOCK 1.6 | $28.00 | 1 |
| 11 | A00088-22-01 | FRONT AXLE BOLT | $2.60 | 1 |
