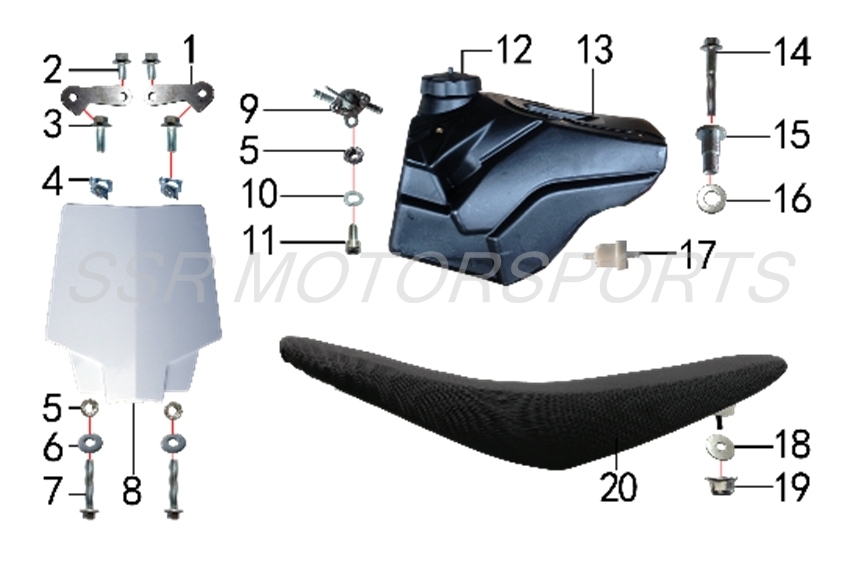

Fuel Tank & Seat
CLICK PARTS TO ADD
| NO. | PART # | DESCRIPTION | RETAIL | QTY |
|---|---|---|---|---|
| 1 | A00732-02-00 | UPPER FRONT NUMBER PLATE BRACKET | $14.00 | 2 |
| 2 | A00031-19-01 | FLANGE BOLT M6X12 | $2.00 | 2 |
| 3 | A00002-19-01 | FLANGE BOLT M6X16 | $2.00 | 2 |
| 4 | A00001-22-05 | CLIP NUT M6 | $2.00 | 2 |
| 5 | A00093-22-03 | FLANGE NUT M6 | $2.00 | 3 |
| 7 | A00012-19-01 | FLANGE BOLT M6X35 | $2.00 | 2 |
| 8 | A01006-02-01 | FRONT NUMBER PLATE WHITE | $28.00 | 1 |
| 9 | A00338-12-00 | FUEL PETCOCK | $26.30 | 1 |
| 10 | A00104-21-01 | WASHER 6X18X1.5 | $2.00 | 1 |
| 11 | A00011-19-02 | ALLEN BOLT M6X16 | $2.00 | 1 |
| 12 | A00476-12-00 | FUEL TANK CAP ALUMINUM | $24.50 | 1 |
| 13 | A00257-12-00 | FUEL TANK | $89.30 | 1 |
| 14 | A00021-19-01 | FLANGE BOLT M6X40 | $2.50 | 1 |
| 15 | A00259-12-00 | COLLAR 22X6.5X27X12 | $2.00 | 1 |
| 16 | A00107-21-01 | WASHER 10X22X1.5 | $2.00 | 1 |
| 17 | A00260-12-00 | FUEL FILTER | $12.30 | 1 |
| 18 | A00004-21-01 | WASHER M8 | $2.00 | 1 |
| 19 | A00100-22-34 | FLANGE LOCKNUT M8 | $2.00 | 1 |
| 20 | A01031-02-00 | SEAT | $85.80 | 1 |
| 21 | A00477-12-00 | FUEL TANK CAP GASKET | $8.00 | 1 |
| 22 | A00478-12-00 | FUEL TANK CAP VENT | $12.30 | 1 |
