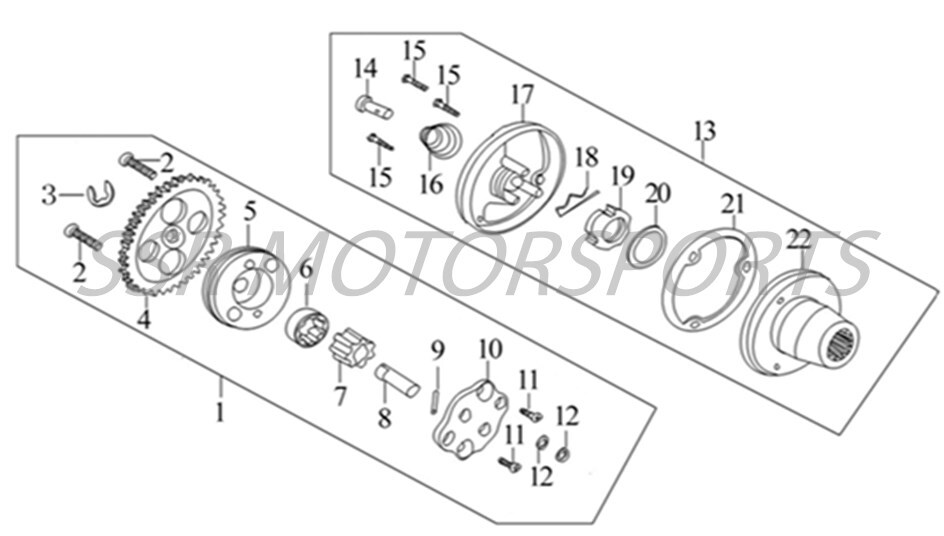

Oil Pump / Oil Sling
CLICK PARTS TO ADD
| NO. | PART # | DESCRIPTION | RETAIL | QTY |
|---|---|---|---|---|
| 1 | A03092-09-00 | OIL PUMP ASSY | $45.50 | 1 |
| 2 | A00027-20-01 | CS SCREW M6X30 | $2.00 | 2 |
| 3 | A00018-24-07 | CIRCLIP 5 | $2.00 | 1 |
| 4 | A03093-09-00 | OIL PUMP DRIVEN SPROCKET 34T | $15.80 | 1 |
| 5 | A03094-09-00 | OIL PUMP BODY | $15.80 | 1 |
| 6 | A03095-09-00 | OUTER ROTOR | $4.40 | 1 |
| 7 | A03096-09-00 | INNER ROTOR | $4.40 | 1 |
| 8 | A03097-09-00 | OIL PUMP SHAFT | $12.30 | 1 |
| 9 | A00004-25-03 | ROLL PIN 2.5X10 | $2.00 | 1 |
| 10 | A03098-09-00 | OIL PUMP CAP | $8.00 | 1 |
| 11 | A00102-20-01 | CS SCREW M6X10 | $2.00 | 2 |
| 12 | A00051-27-00 | O-RING 9.4X2.4 | $2.00 | 2 |
| 13 | A02247-09-00 | OIL STRAINER ASSY | $35.00 | 1 |
| 14 | A03099-09-00 | FILTER BOLT M8X20 | $2.50 | 1 |
| 15 | A00007-20-01 | CS SCREW M5X12 | $2.00 | 3 |
| 16 | A02238-09-00 | OIL PASSAGE SPRING | $2.60 | 1 |
| 17 | A02237-09-00 | ROTOR CAP | $12.30 | 1 |
| 18 | A00036-25-01 | COTTER PIN | $2.00 | 1 |
| 19 | A02236-09-00 | SPLINED NUT M16 | $4.40 | 1 |
| 20 | A00072-21-01 | DISHED WASHER 16X27X2 | $2.60 | 1 |
| 21 | A00222-13-00 | OIL STRAINER BODY GASKET | $8.00 | 1 |
| 22 | A02235-09-00 | OIL STRAINER BODY | $14.00 | 1 |
